Make sure to follow the operation instruction of model W2 as shown in the illustration. The dedicated power P12 should beequipped. The positive pole of laser tube is in high voltage (the ignition voltage is 19kv). It may cause the followingconsequence when it is failed to follow the instruction: Arcing; the inner tube will be punctured by electricity and may causewater leakage.
Cutting function.
Engraving function: Very good. When the working current is 4mA and the tube is in the state of preionization, the laser can beused for high-frequency impulse engraving.

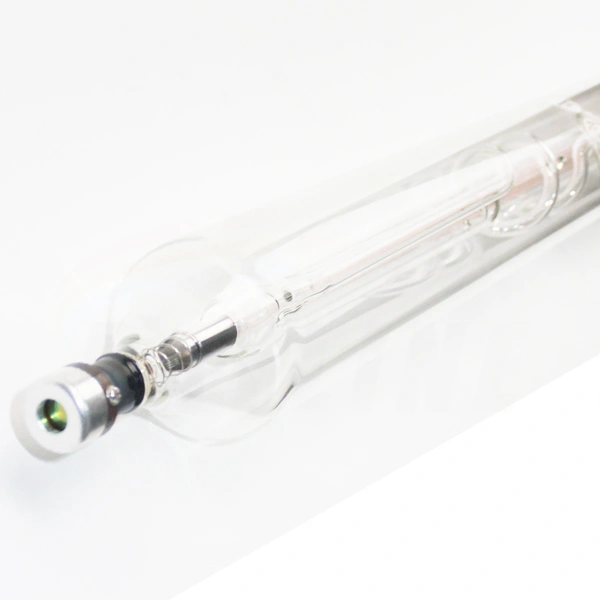

| Name | RECI CO2 Laser Tube | ||
| Model | RECI W4 | Diameter | 80mm |
| Power | 100-300W | Service Life | 10000 hours |
| Length | 1400mm | Warranty | 300 days |
| Net Weight | 3.5kg | Gross Weight | 5.0kg |
Carton Size | 138*28*27cm | Wooden Size | 140*32*30cm |
| Application | Laser field, Laser marking machine, laser welding machine, laser cutting machine, laser engraving machine, CNC machinery, UV printer | ||
Water cooling: using purified water; 2 to 5 liter/minute; water temperature: 10℃-40℃.
The operating environment: temperature 2-40℃; Humidity 10-60%.
The working current: test current is 29mA. Maximum working current is 29mA. The running current must be kept below 27mA. The life
span can reach 8,000 hours if the current is kept below 25mA. The ammeter must be connected to the negative electrode of laser tube.
When it is working under over-high current for long term, the negative pole will appear light yellow and the life span will be shortened rapidly.
To protect dust from going into the insulation sheath, please wrap it with plastic film.
1. RECI CO2 Laser Tube has 300 days warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
