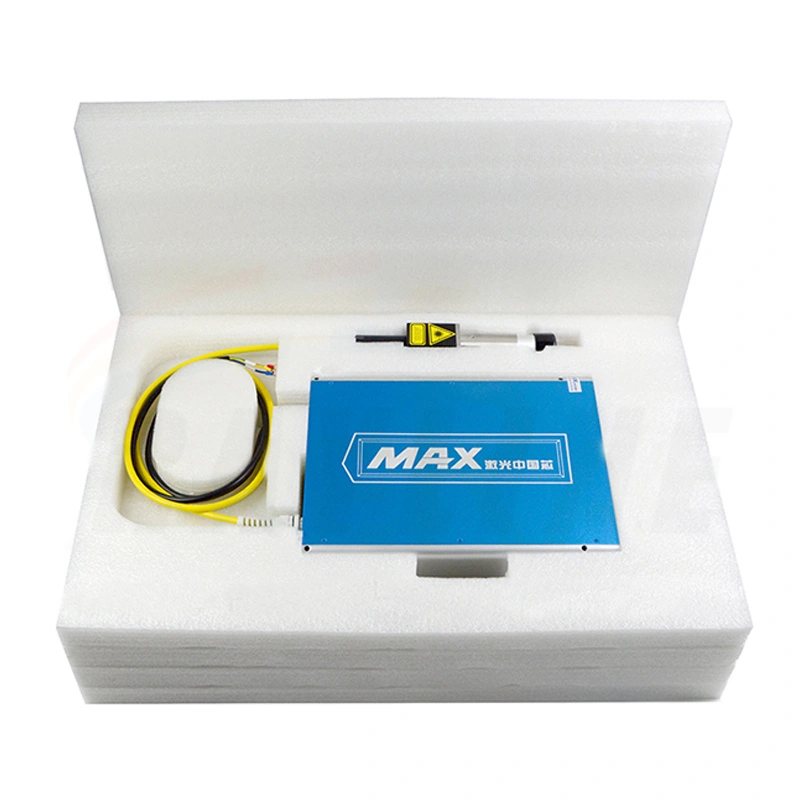

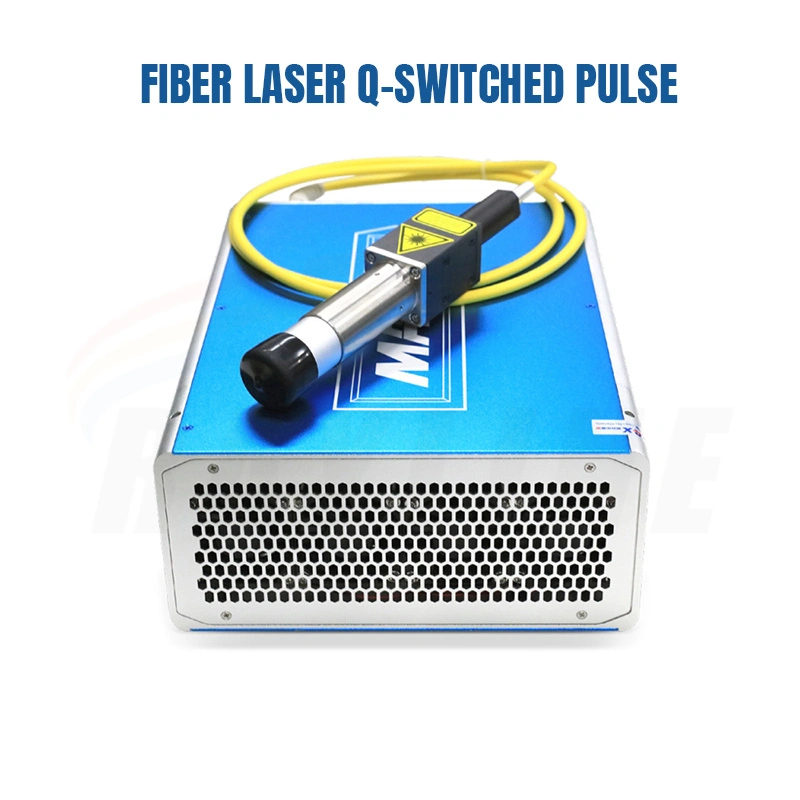

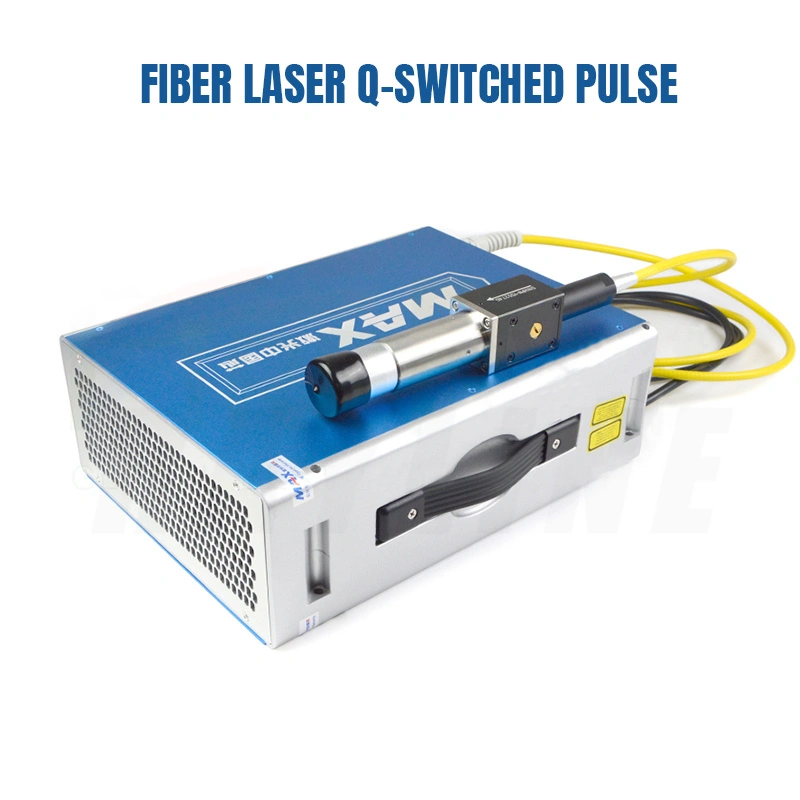

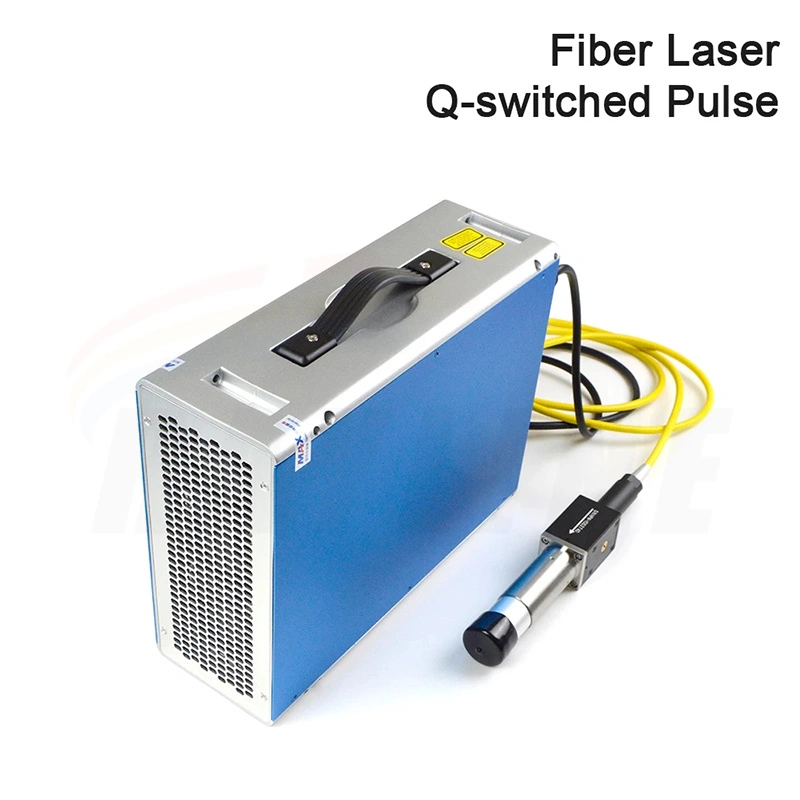

MAX 5W 10W 20w 30w 50w 70w pulse fiber laser source/generator for marking/cutting metal
The MAX Fiber Laser Generator has a small and compact structure and is highly integrated with laser emission system, laser control system, motion control system and computer system. On the basis of satisfying the functions of traditional marking machines, it integrates information technology genes, connects equipment remotely through WIFI, and is equipped with MAX Fiber Laser Generator independently developed Max Marking marking software and mobile APP, which is easy to learn, supports function expansion, and facilitates automatic integration. Energy saving and environmental protection, lifelong maintenance-free and no consumables. The MAX Fiber Laser Generator has revolutionary significance in developing the field of high-speed, high-resolution laser marking system.
| Product Name | MAX Fiber Laser Generator/ Source | |||||
| Model | MFP-5W | MFP-10W | MFP-20W | MFP-30W | MFP-50W | MFP-70W |
| Average Optical Power | 5W | 10W | 20W | 30W | 50W | 70W |
| Operating Mode | Pulse | Pulse | Pulse | Pulse | Pulse | Pulse |
| Beam Quality M2 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.8 |
| Single Pluse Energy | 0.45MJ | 0.45MJ | 1MJ | 1-1.2MJ | 1-1.5MJ | 1.4MJ |
| Pulse Repetition Frequrncy | 10-30KHZ | 22-50KHZ | 20-80KHZ | 30-60KHZ | 33-80KHZ | 50-170KHZ |
| Rated Power Consumption | 90W | 120W | 150W | 240W | 360W | 450W |
| Power Adjustment Range(%) | 10~100 | 10~100 | 10~100 | 10~100 | 10~100 | 10~100 |
| Light Pulse Width (NS) | 100(90-110) | 100(90-110) | 100(90-110) | 100(90-110) | 100(90-110) | 100-140 |
| Output Power Inktability | 5 | 5 | 5 | 5 | 5 | 5 |
| Output Beam Diameter(MM) | 7.5(6-9) | 7.5(6-9) | 7.5(6-9) | 7.5(6-9) | 7.5(6-9) | 7.5(6-9) |
| Output Beam Ellipticity(%) | 90 | 90 | 90 | 90 | 90 | 90 |
| Laser Opening Time(μs) | 110-140 | 110-140 | 110-140 | 110-140 | 110-140 | 110-140 |
| Laser Off Time(μs) | 110-150 | 110-150 | 110-150 | 110-150 | 110-150 | 110-150 |
| Optical Fiber Cable Length(M) | 2.5（1.9-3） | 2.5（1.9-3） | 2.5（1.9-3） | 2.5（1.9-3） | 2.5（1.9-3） | 2.5（1.9-3） |
| Cooling Method | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
| Machine Size(mm) | 355*266*120 | 355*266*120 | 355*266*120 | 355*266*120 | 355*266*120 | 355*266*120 |
| Machine Weight(KG) | 10 | 10 | 10 | 10 | 10 | 10 |
| Spot diameter | Spot diameter can be customized according to customer needs | |||||
1. The world's smallest volume, the most powerful
2. Laser core + smart core
3. Cost saving, marking speed increased by 20%
4. Accept OEM customization
Laser processing technology is a technology for cutting, welding, surface treatment, drilling, micro-machining, as a light source, identifying objects, etc., of materials, including metals and non-metals, using the characteristics of the interaction between laser beams and substances. Traditional applications The largest field is laser processing technology. Laser technology is a comprehensive technology involving many disciplines such as light, machine, electricity, material and detection.
Traditionally, its research scope can be generally divided into processing systems, including lasers, light guide systems, processing machine tools, control systems and detection systems. Processing technology, including cutting, welding, surface treatment, punching, marking, scribing, fine-tuning and other processing technology.
