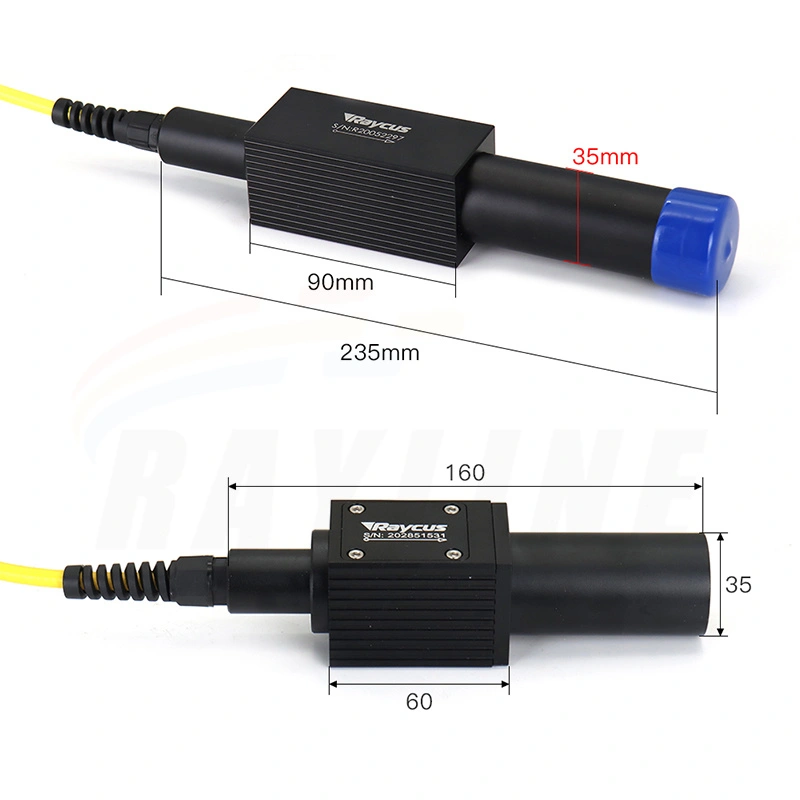

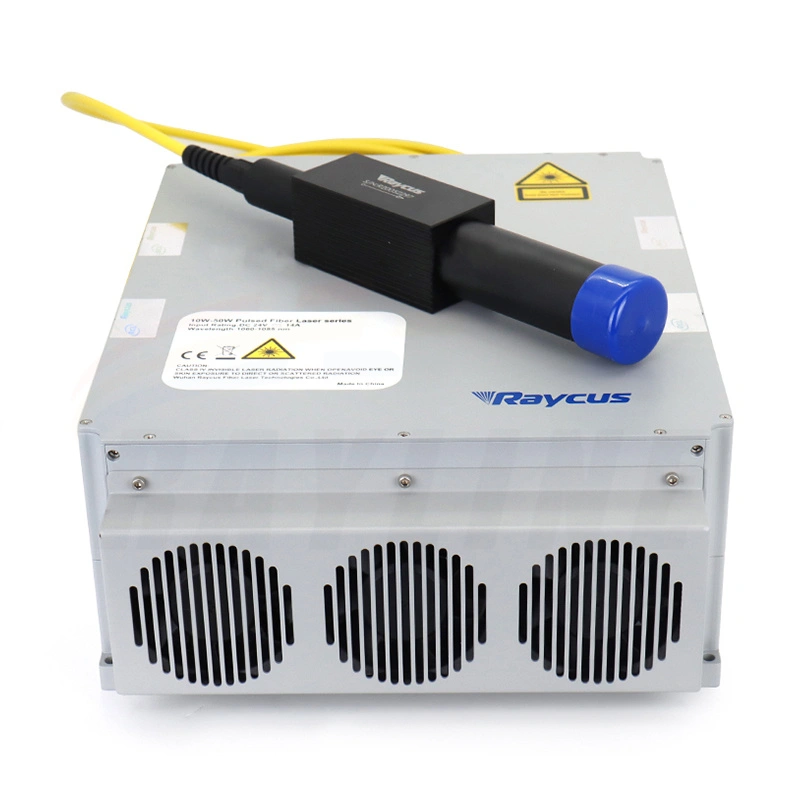

Raycus Laser Source 20W 30W 50W RFL-P20/30/50QBI Fiber Laser
The third-generation medium-power single-mode continuous fiber laser developed by Raycus Laser Source 20W/30W/50W, the new laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting.
| Laser Source Brand | RAYCUS | ||
| Model | RFL-P20QBI | RFL-P30QBI | RFL-P50QBI |
| Pulsed Fiber Laser | 20W | 30W | 50W |
| Wavelength (nm) | 1064 | 1064 | 1064 |
| Polarlzation | Random | Random | Random |
| Optical Isolator | YES | YES | YES |
| Nominal Average Output Power (W) | ≥20 | ≥30 | ≥50 |
| Single Pulse Energy (MJ) | 1@30KHZ | 1@30KHZ | 1@30KHZ |
| Pulse Repetition Rate (KHZ) | 20-60 | 30-60 | 50-100 |
| Output Power Tunability（%） | 10-100 | 10-100 | 10-100 |
| Output Fiber Cable Length (m) | 2 | 2 | 2 |
| Working Voltage (VDC) | 24±1 | 24±1 | 24±1 |
| Power Consumption (W) | 200 | 300 | 400 |
| Cooling System | Forced Air Cooled | Forced Air Cooled | Forced Air Cooled |

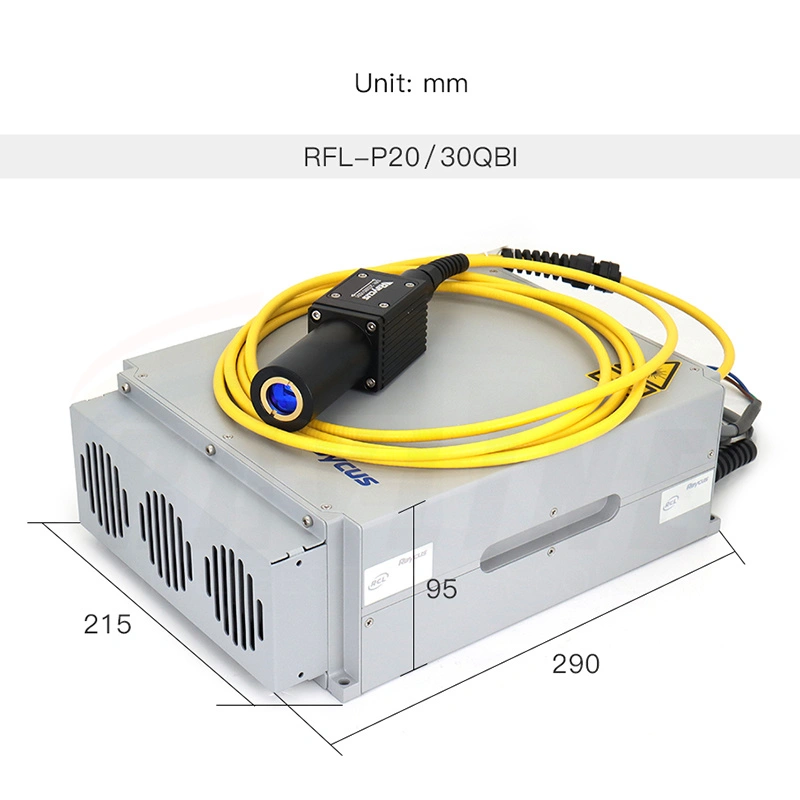

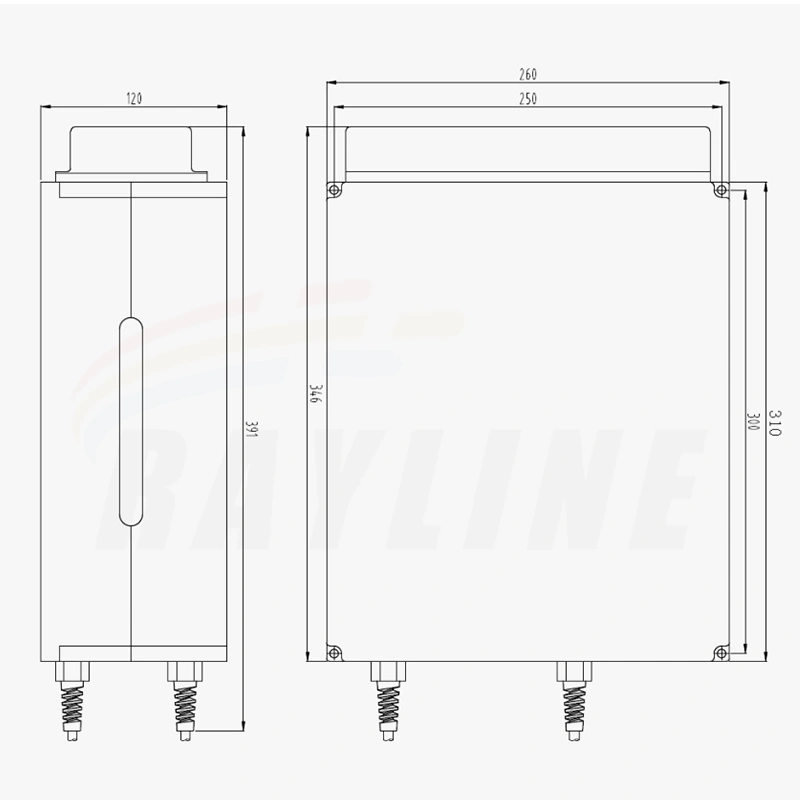

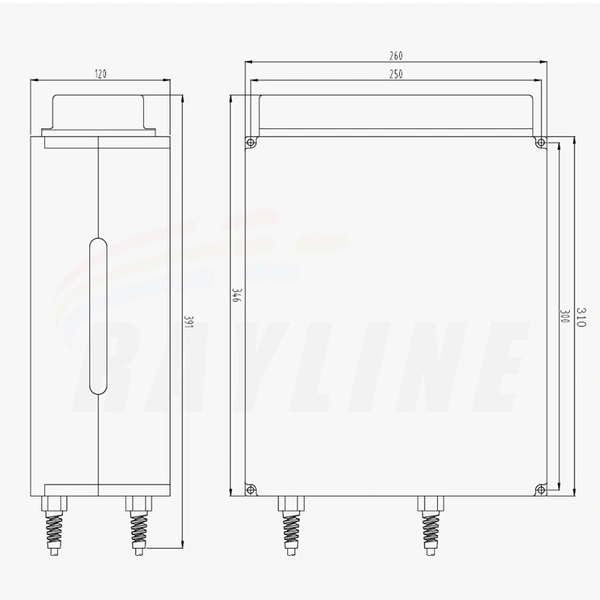

| Dimension W*D*H (MM) | 260*391*120 | 260*391*120 | 396*360*125 |
| Operating Tempereature | -60℃~100℃ | -60℃~100℃ | -60℃~100℃ |
Raycus Laser Source applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, Raycus Laser Source has obvious advantages.
*High electro-optical conversion efficiency
*Altitude stress-resisting capacity
*Sheet cutting efficiency
*Customized output fiber length
*Optional QCS or QBH connector
*Optional air cooling or water cooling
*Maintenance-free operation
*Wide modulation frequency range
