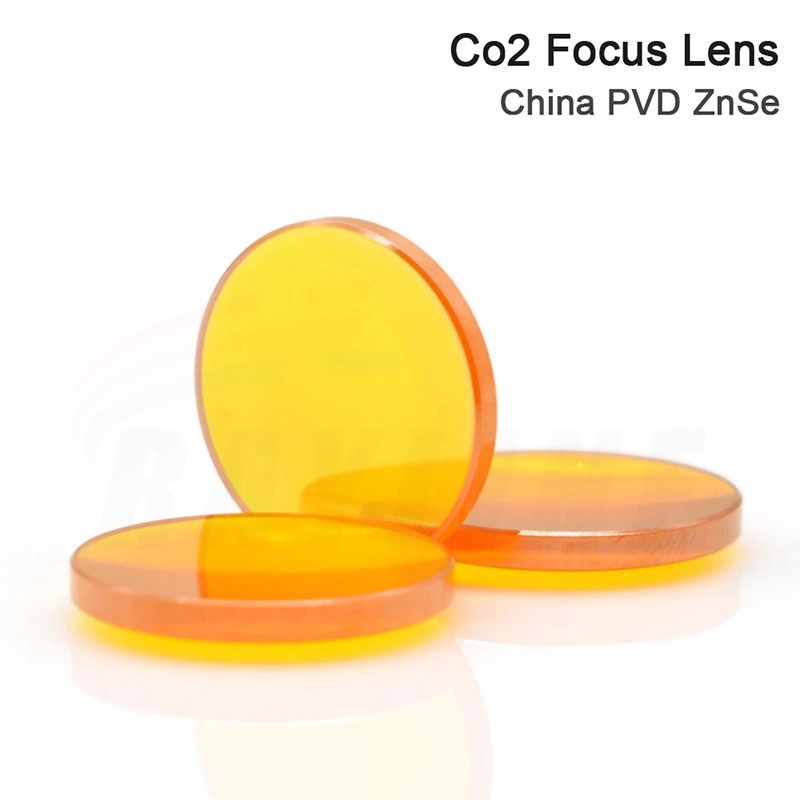

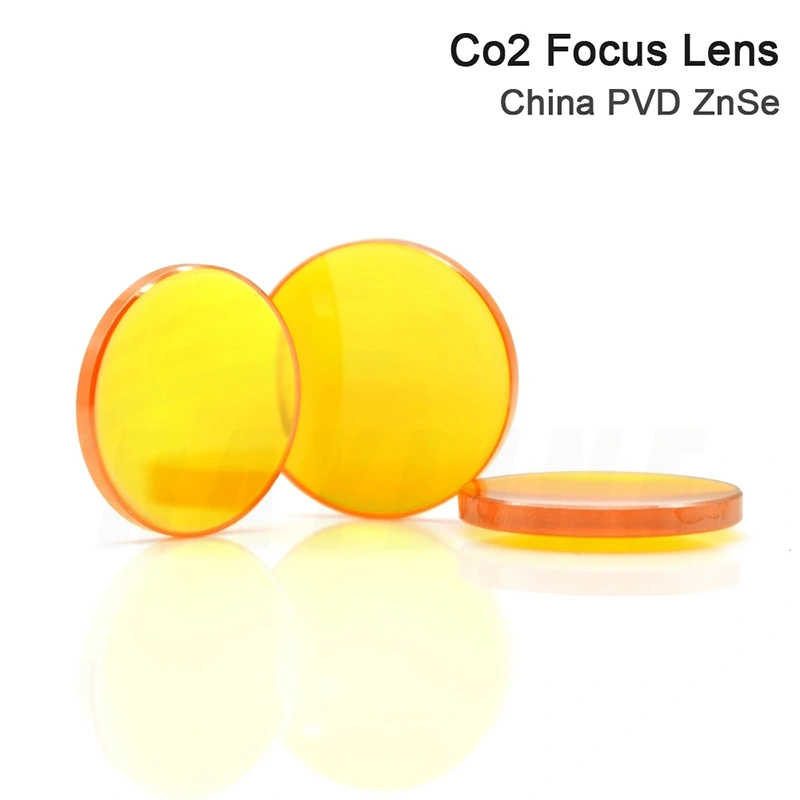

CO2 Focus Lens China PVD ZnSe RAYLINE Factory Supply Laser Machine
| Brand | RAYLINE |
Material | CVD ZnSe |
Diameter tolerance | +0/0.12mm |
Wavelength | 10.6um |
Thickness tolerance | + 0/ +0.2mm |
Transmittance | 99% |
FL Tolerance | <士1% |
Clear Aperture | > 90% |
Surface Figure | <2 per 1"Dia |
| AR/AR coating | R<0.5% per surface |
| Surface Quality | 40- 20 scratch and dig |
Material: China PVD ZnSe
High Efficiency: High temperature Resistance Smaller Focusing Spot Size
Durable: Double- sided AR coating High transm- ittance 99.5%
Long Life Time: Not easy to crack Gre at Scratch Resistance
Lens Cleaning Step
Step1: Use an air bulb to blow off any loose contaminants.
Step2: Wipe the surface gently with a damp cotton swab.
Step3: Using light pressure, wipe the optic's surface with the damp cotton. Wipe excess distilled vinegar with a clean dry cotton swab.
