Portable Laser Welder Machine Metal Fiber Hand Held Laser Soldering Machine
Air-cooled laser welding machines are laser welding devices that use forced air cooling and usually employ high-power fans for heat dissipation. This forms a sharp contrast with the more common laser welding machines currently on the market that use water-cooled machines for heat dissipation.

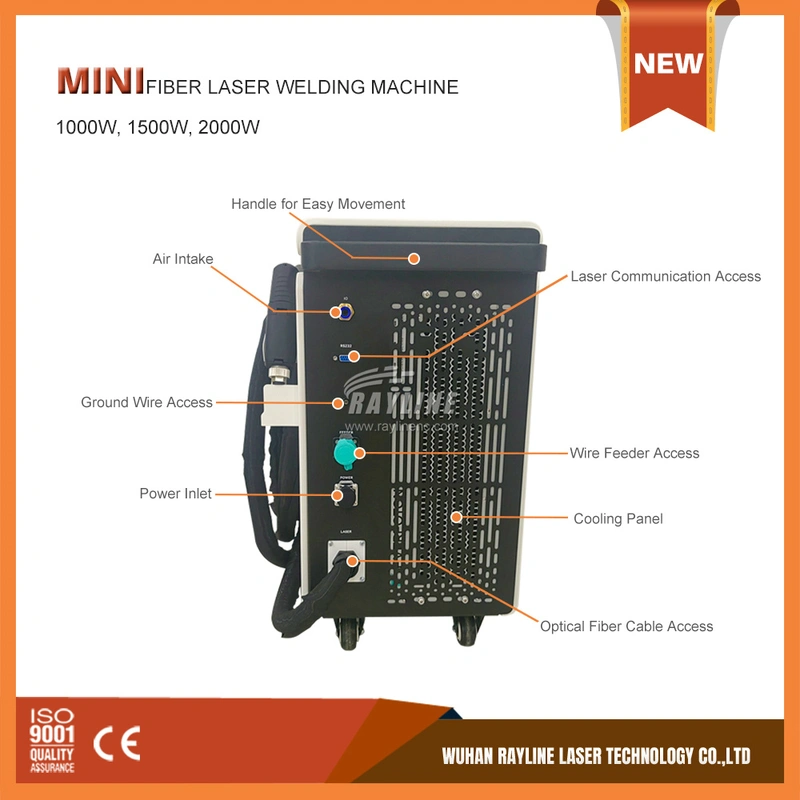

This is the most revolutionary advantage of air-cooled laser welding. It eliminates the need for a large and bulky external water chiller, integrating the laser, cooling system and control unit in a single chassis.

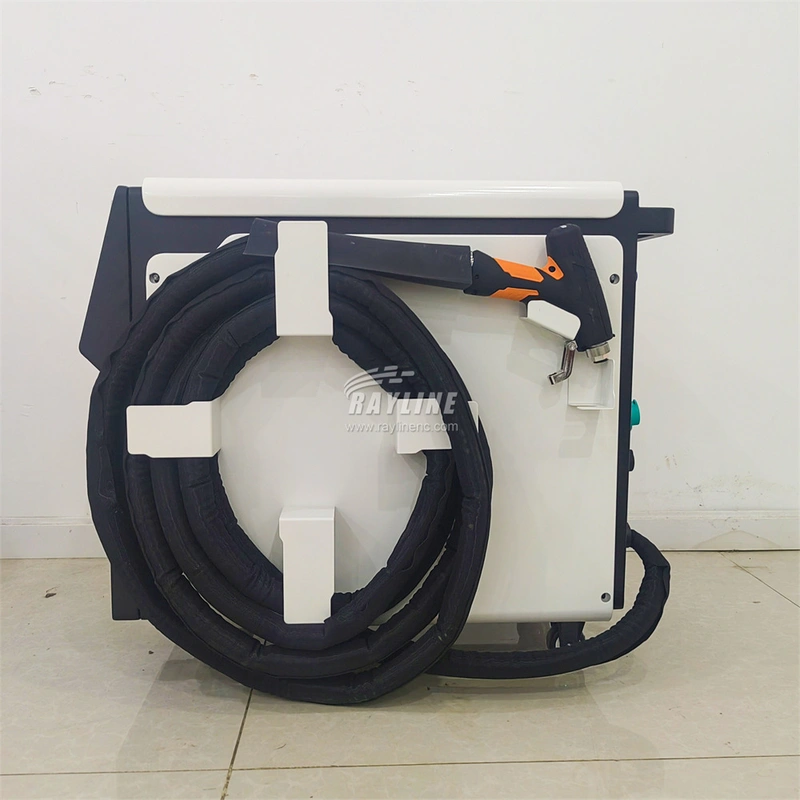

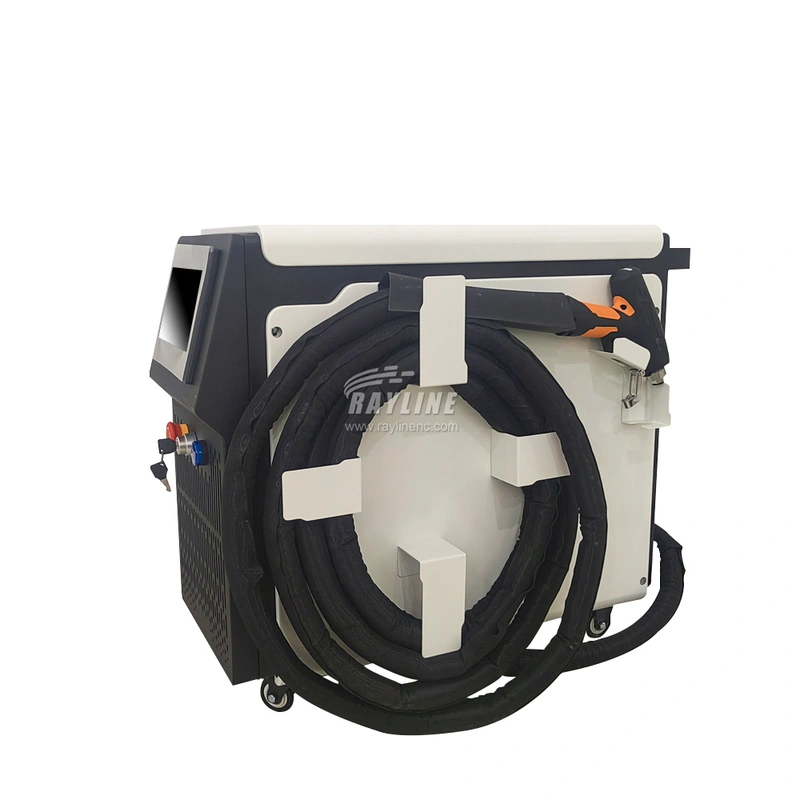

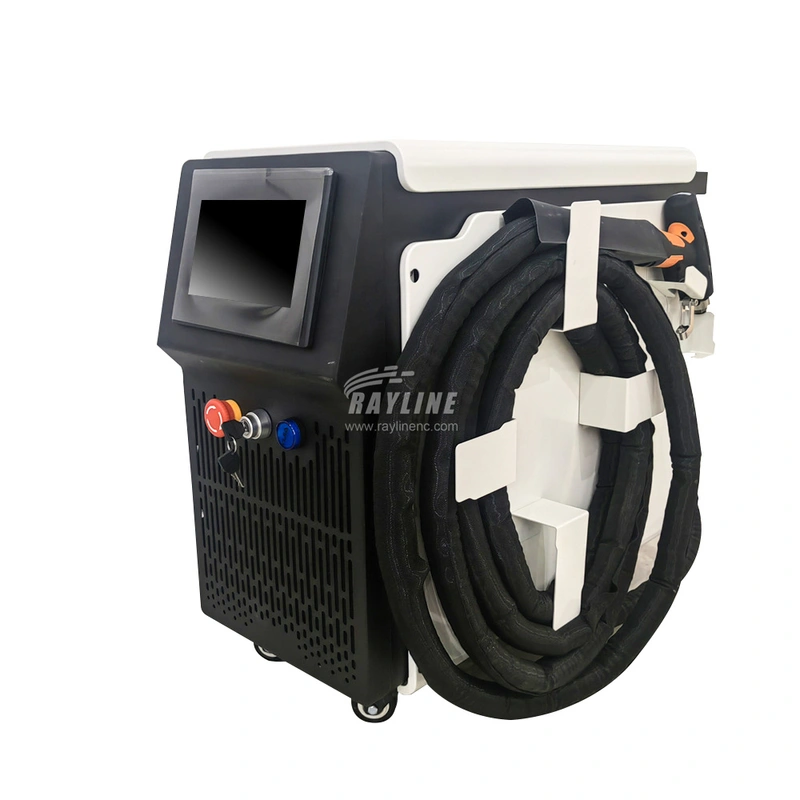

The equipment is compact in size and extremely easy to move. It can even be easily pulled from one workstation to another like a suitcase, or flexibly scheduled between different workshops. The operation preparation is simple and plug-and-play.
| Model | RA-HW1000N | RA-HW1500N | RA-HW2000N |
| Laser Power | 1000W | 1500W | 2000W |
| Wavelength | 1070nm | 1070nm | 1070nm |
| Output fiber length | 50um/8m | 50um/8m | 50um/8m |
| Spot width | 5mm | 5mm | 5mm |
| Laser Welding Depth | 2mm | 4mm | 5mm |
| Laser Cleaning Width | 30mm, It can be customized to 120mm or wider | ||
| Laser Cutting Thickness | 1.2mm | 1.5mm | 2mm |
| Electricity demand | 220VAC/50Hz/60Hz | 220VAC/50Hz/60Hz | 220VAC/50Hz/60Hz |
| Total power | 4.2kw | 4.5kw | 4.5kw |
| Welding head size | 296 x 39 x 147 mm | 296 x 39 x 147 mm | 296 x 39 x 147 mm |
| Overall size | 650 x 350 x 600 mm | 650 x 350 x 600 mm | 650 x 350 x 600 mm |
| Total Weight | 40KG | 42kg | 45kg |
| Cooling Method | Air- Cooled | ||
| Machine Language | English, Portuguese, Italian, Russian, French, German, Spanish, Polish, Korean, Turkish, Greek, Chinese, Czech, Japanese, Slovak, Thai, Vietnamese, Romanian, Customized | ||

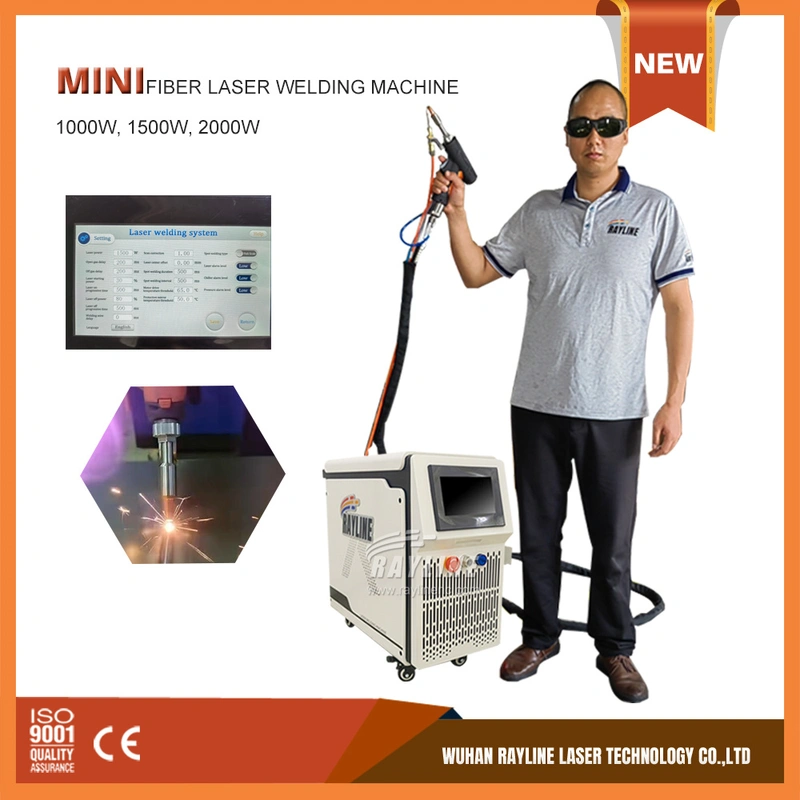

| Opreating System | Built in Colors touch Screen for Laser Welding+ Laser Cleaning +Laser Cutting | ||
| Application | Widely used in hardware industries such as cabinets, kitchens and bathrooms, staircase elevators, stainless steel homes,ect | ||
Core Advantages: Extremely high convenience and mobility
a. No water-cooling machine is required, and the equipment has a high degree of integration
Traditional water-cooled machines require connection to water sources, addition or replacement of coolant (deionized water), and prevention of pipe blockage and leakage. Air-cooled laser welding completely eliminates these steps. Just connect the power supply, turn on the switch, and the device will quickly enter the working state, greatly reducing the complexity of use and preparation time.
b. No risk of freezing and simple maintenance
No water-cooling related troubles: There is no risk of scale or algae growth clogging the pipes, and there is no need to worry about the coolant freezing in cold environments.
c. Low maintenance cost.
Basically, it only requires regular cleaning of the dust-proof net and keeping the fan air inlet unobstructed. The maintenance work is very simple and does not consume consumables such as coolant.
Applicable Scenarios and Economic Benefits
a. It is particularly suitable for maintenance, small-batch and diversified production
For scenarios such as mold repair, hardware processing, kitchenware repair, and display cabinet production, the work is often fragmented and diverse. The flexibility of air-cooled laser welding makes it a "universal toolbox in the welding field", ready to be needed at any time.
b. Energy conservation and environmental protection
The power consumption of an air-cooled system is much lower than that of the water pump and compressor in a water-cooled machine. Therefore, within the same usage time, the total energy consumption of air-cooled equipment is lower and more energy-efficient.
c. The initial investment and total cost of ownership are relatively low
Because the water chiller is eliminated, the overall procurement cost of the equipment is usually more competitive. Meanwhile, due to its simple maintenance and low energy consumption, its long-term total cost of ownership has also been effectively controlled.
a. Welding processing shops and repair shops: They need to handle a wide variety of scattered welding tasks with unfixed locations.
b. Start-up enterprises or small-scale producers: Limited budgets, and production is not entirely in large quantities of a single variety.
c. Situations where on-site or outdoor welding is required: for instance, at construction sites or installation sites where a stable water source cannot be provided.
d. Users mainly engaged in welding thin plates, hardware parts and decorative items. Great importance is attached to the convenience and speed of the equipment.
