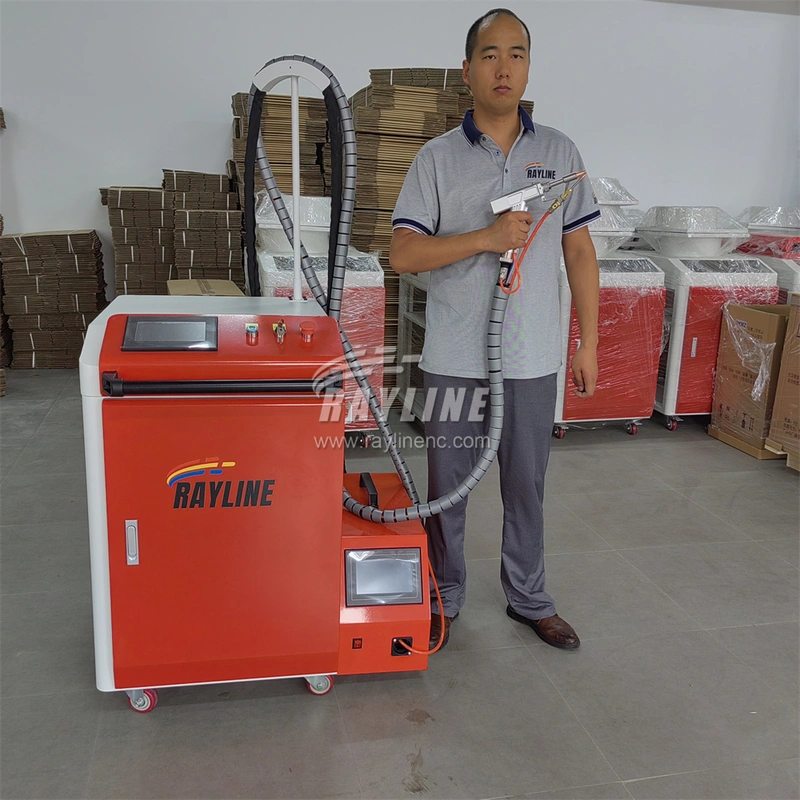

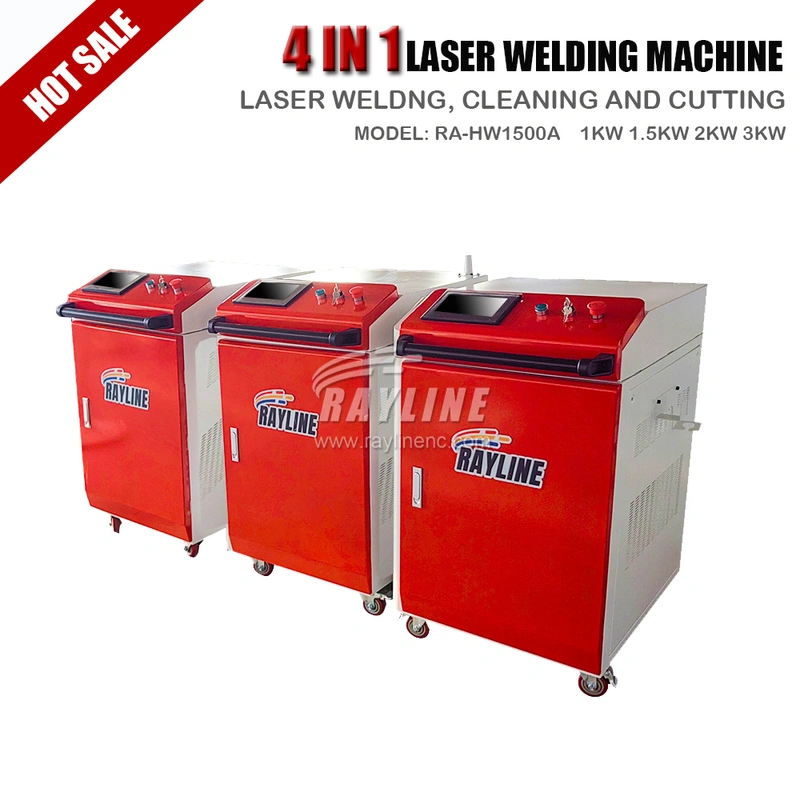

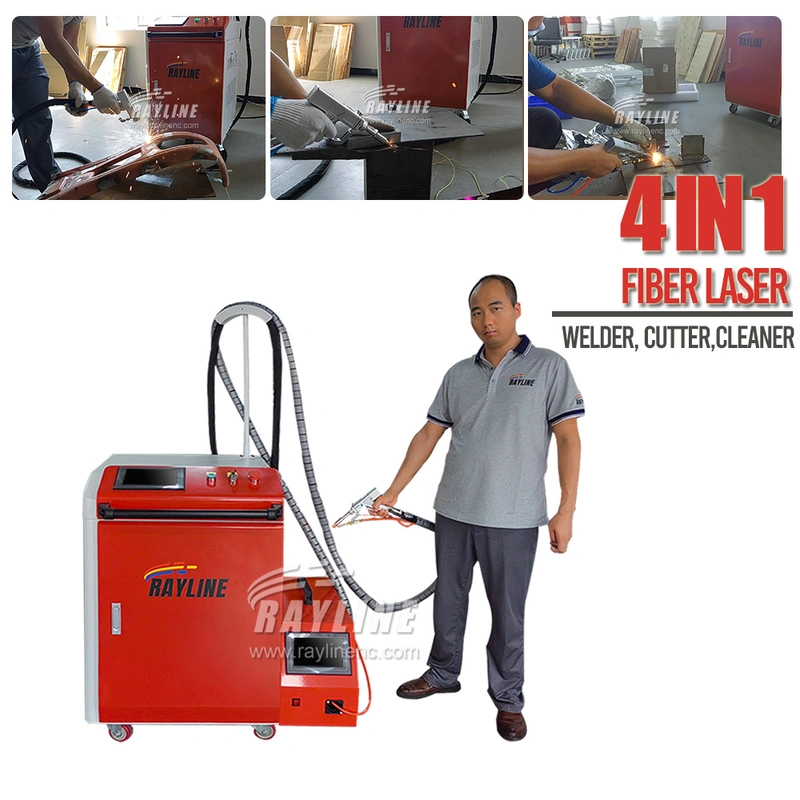

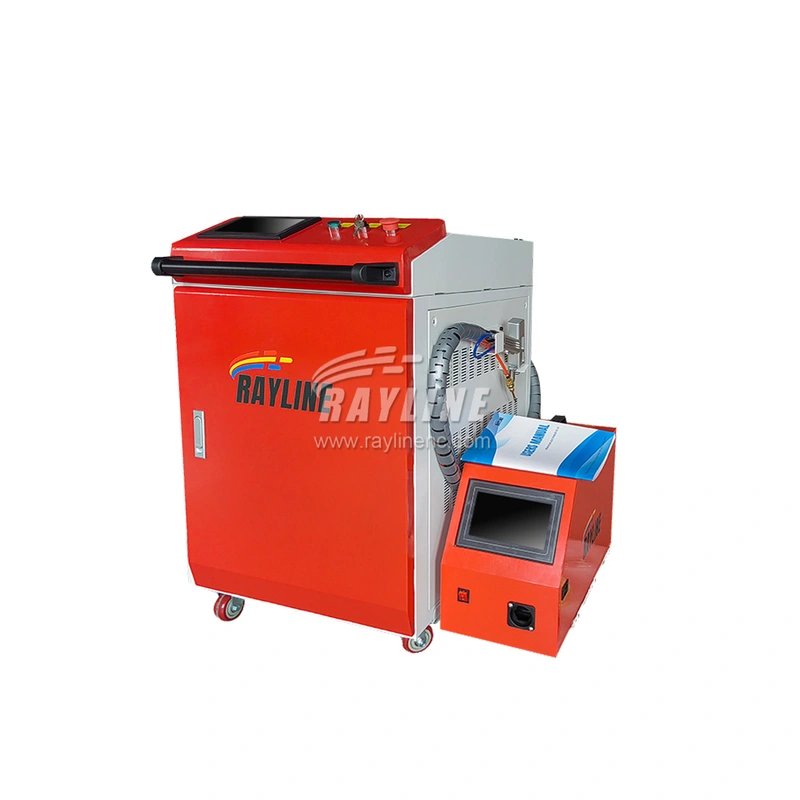

4 in 1 Laser Weder Cutter Cleaner 1kw 1.5kw 2kw 3kw Factory Supply
4 in 1 handheld laser welding machine is a new generation of laser welding products. The machine adopts a four-in-one color touch screen system, which can realize functions such as cutting + welding + cleaning. One machine with multiple functions can meet various application scenarios. The laser of the machine is a high-quality light source from JPT. The four-in-one handheld laser welding machine adopts an integrated design, with beautiful appearance and stable performance. The four-in-one handheld laser welding machine is easy to install and operate, and has high safety. Hand-held laser welding machine is equipped with wire feeding machine, which reduces the requirement of parts for clearance and further improves the welding quality. The four-in-one hand-held laser welding machine can also be used in conjunction with collaborative robots to fix the welding torch on the collaborative robot, reducing the labor intensity of the operator and improving the welding quality of the weld.
| Name | 4 in 1 Laser Welding Cleaning Cutting Machine | |||
| Model | RA-HW1000A | RA-HW1500A | RA-HW2000A | RA-HW3000A |
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Beam Diameter | 0.2-1.5mm | 0.2-1.5mm | 0.2-1.5mm | 0.2-1.5mm |
| Volage (Customized) | 100-400VDC | 100-400VDC | 100-400VDC | 100-400VDC |
| Laser Welding Depth | 2.5MM | 5MM | 6MM | 8MM |
| Laser Cleaning Width | 90MM | 90MM | 90MM | 90MM |
| Laser Cutting Thicknees | 1.2MM | 1.8MM | 2.5MM | 3MM |
| Pulse Frequency (Adjustable) | 1-100HZ | 1-100HZ | 1-100HZ | 1-100HZ |
| Aiming Positioning (Rote 360°） | Red Light | Red Light | Red Light | Red Light |
| Fiber Length | 8M | 8M | 8M | 8M |
| Cooling Method | Efficient Cooling of Water Tank Water Circulation | |||
| Opreating System | Built in Colors touch Screen for Laser Welding+ Laser Cleaning +Laser Cutting | |||
| Language | English, Portuguese, Italian, Russian, French, German, Spanish, Polish, Korean, Turkish, Greek, Chinese, Czech, Japanese, Slovak, Thai, Vietnamese, Romanian ( Customized) | |||
| Application | Widely used in hardware industries such as cabinets, kitchens and bathrooms, staircase elevators, stainless steel homes,ect | |||
1. Four-in-one handheld laser welding machine adopts precision sheet metal cabinet structure, smart internal design, good control system, stable operation and high stability.
2. Expand the tolerance range of the processed parts and the width of the weld seam, solve the disadvantage of the small spot, and the weld seam shape is better
3. Portable shape, body engineering design method, comfortable grip.
4. The four-in-one handheld laser welding machine is easy to control and easy to operate.
5. The four-in-one handheld laser welding machine has multiple safety alarms, automatically locks the light after removing the workpiece, and has high safety; the weld seam is beautiful, the speed is fast, there is no consumables, no weld marks, no discoloration, and no post-polishing.
6. The machine can be equipped with multiple angle nozzles to meet the welding needs of different products.
The four-in-one handheld laser welding machine has the characteristics of fast welding speed, high efficiency, good welding effect, less welding consumables, long life and environmental protection. It can be widely used in kitchen utensils, door chimney guardrails, stair elevators, stainless steel furniture, hardware sheet metal, Billboards, craft gifts, auto repair, automobile manufacturing, rail transit, aerospace and other industries welding.
