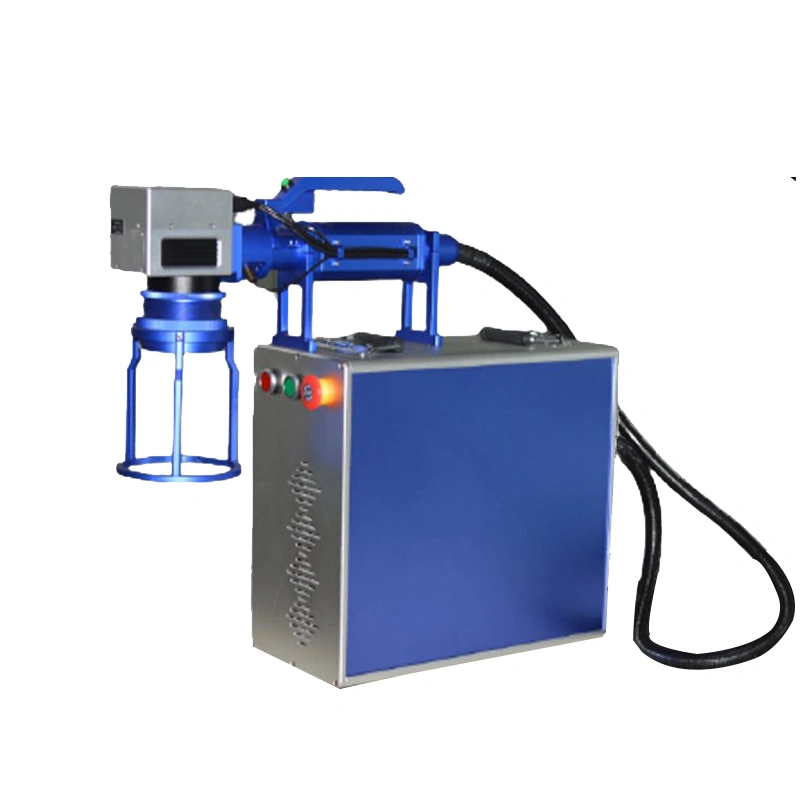

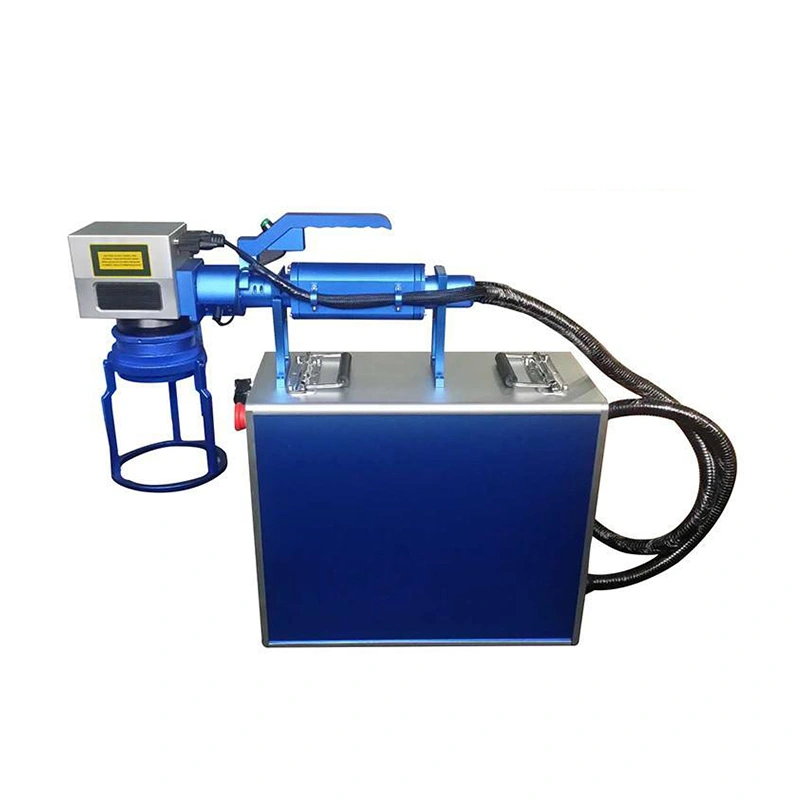

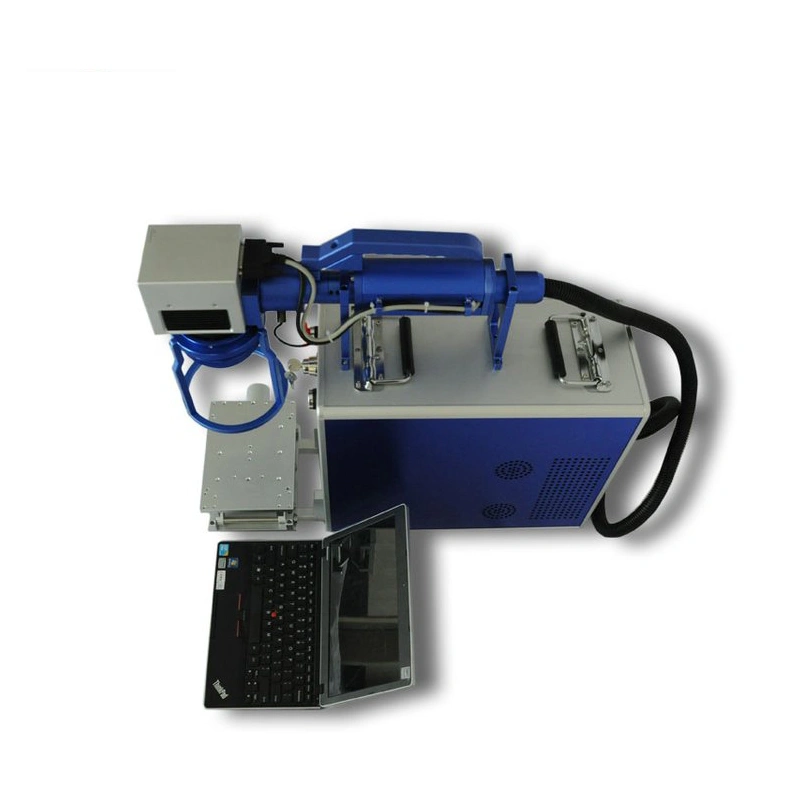

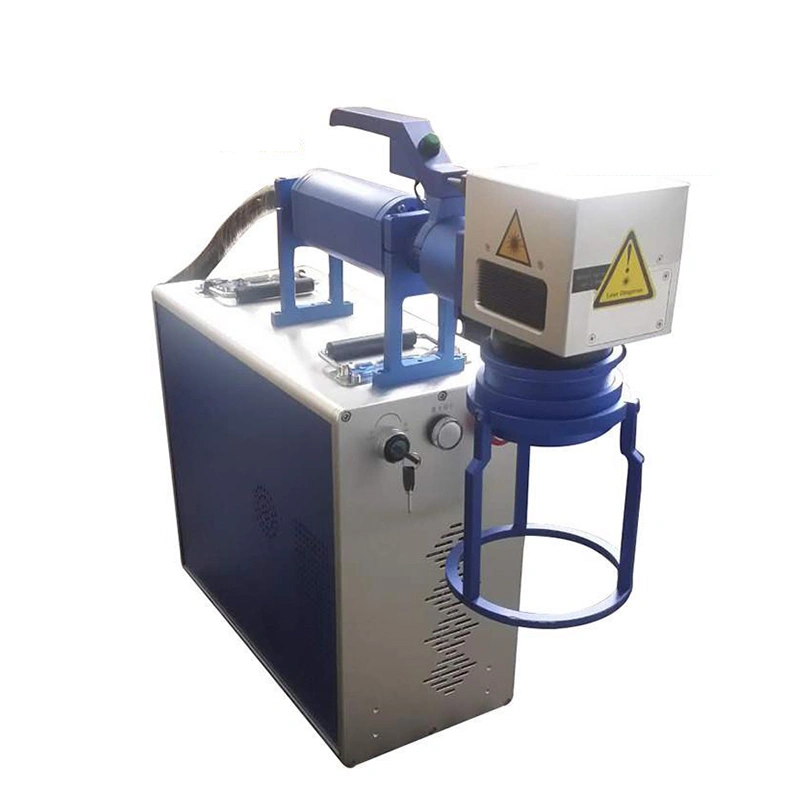

Portable handheld fiber laser marking machine is the third generation laser marking machine system developed by our company. Using fiber laser to output laser, the whole machine is small and exquisite, the output beam quality is good, the reliability is high, the long operating life, energy saving, can engrave metal materials and parts Non-metallic materials, portable hand-held fiber laser marking machines are mainly used in fields that require high depth, smoothness, and fineness, such as mobile phone stainless steel trim, clocks, molds, IC, mobile phone keys and other industries.
| Name | Portable handheld fiber laser marking machine | |||
| Model | RA-LM20 | RA-LM30 | RA-LM50 | RA-LM100 |
| Laser Power | 20W | 30W | 50W | 100W |
| Laser Wavelength 1064mm | 1064mm | 1064mm | 1064mm | 1064mm |
| Volage Regulating(Customized) | 100-400VDC | 100-400VDC | 100-400VDC | 100-400VDC |
| Marking Depth | 0.01-0.3mm | 0.01-0.3mm | 0.01-0.5mm | 0.01-0.5mm |
| Marking Area | 110*110mm/ 145*145mm/ 175*175mm (Customized) | |||
| Marking Speed | ≤7000mm/s | |||
| Min Line Width | 0.02mm | |||
| Min Character | 0.2mm | |||
| Repeate Daccuracy | 0.002mm | |||
| Cooling System | Air Cooling | |||
| Language | English, Chinese (Customized) | |||
| Application | Hardware tools, knives, kitchenware, plastic products, computer keyboards, metal jewelry, buttons, integrated circuits, packaging bottles and cans, spectacle frames ect | |||
The portable hand-held fiber laser marking machine can process a variety of metal and non-metal materials. Especially for high hardness, high melting point, brittle materials, marking is more advantageous.
It belongs to non-contact processing, does not damage the product, has no tool wear, and has good marking quality.
The laser beam is thin, the processing material consumption is small, and the processing heat-affected zone is small.
The portable hand-held fiber laser marking machine has high processing efficiency, adopts computer control, and is easy to realize automation.
Portable hand-held fiber laser marking machine is mainly composed of three parts: laser, vibrating lens and marking card. The marking machine that uses fiber laser to produce laser has good beam quality and its output center is 1064nm. Portable hand-held fiber laser marking Compared with other types of laser markers, the machine has a longer life span, with an electro-optical conversion efficiency of more than 28%. Compared with other types of laser markers, the conversion efficiency of 2%-10% has a great advantage. It has outstanding performance in energy saving and environmental protection.
The portable hand-held fiber laser marking machine is designed to solve the problem of laser marking of existing large parts. The whole machine and the main computer box are small and convenient. It can be hand-held for operation and can be used for laser marking of large mechanical parts in any direction.
Hand-held fiber laser marking machine has a wide range of applications, especially suitable for marking and engraving products such as hardware tools, knives, kitchenware, plastic products, computer keyboards, metal jewelry, buttons, integrated circuits, packaging bottles and cans, spectacle frames, and sanitary ware faucets. The mark is clear and beautiful,Never disappear. Simple environmental requirements, no need for constant temperature and humidity and water cooling facilities. Consumables are the least, and maintenance is the simplest. The software has super powerful functions, easy to learn and easy to use. Small size and light weight, small footprint, portable handheld fiber laser marking machine can be easily installed on the production line Perform online marking.
1.The Portable hand-held fiber laser marking machine has a two warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
