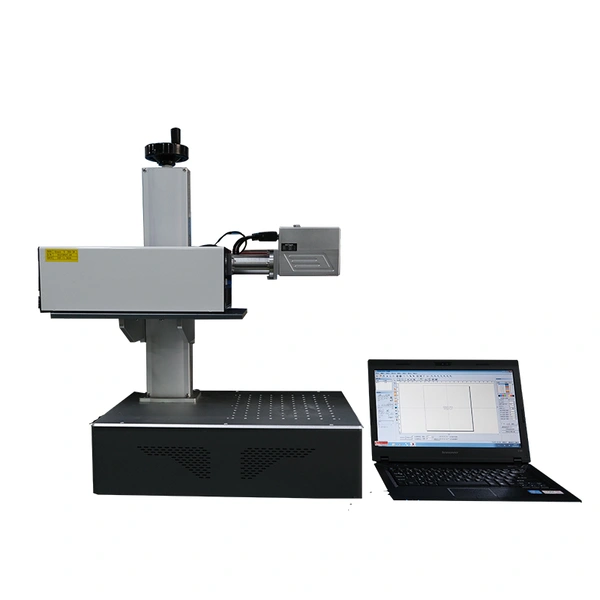

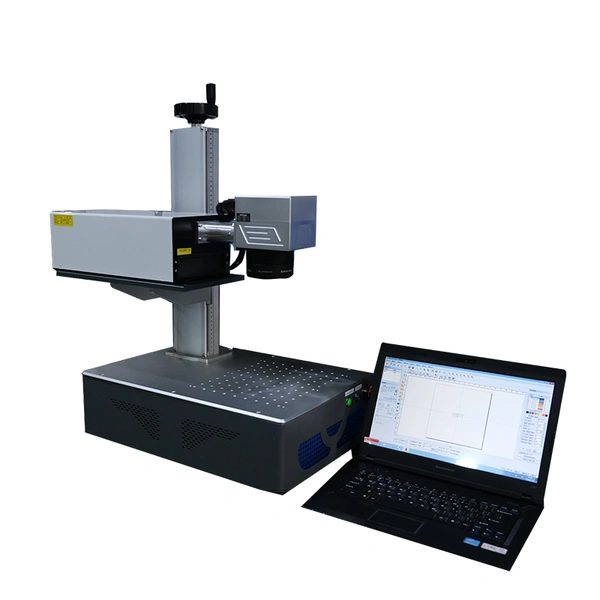

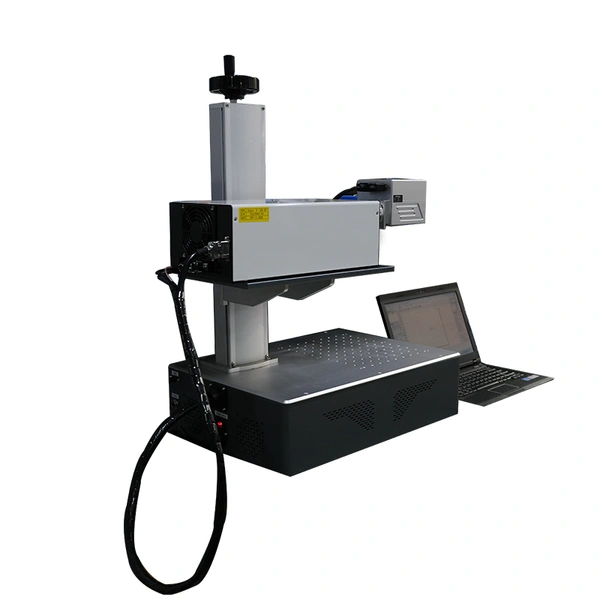

UV Laser Marking Machine belongs to the series of laser marking machines, but it is developed by using a 355nm ultraviolet laser. UV Laser Marking Machine uses a third-order intracavity frequency doubling technology. Compared with infrared lasers, 355 ultraviolet light has a very small focus spot and can be used in greatly reduces the mechanical deformation of the material and has little processing heat impact, because UV Laser Marking Machine is mainly used for ultra-fine marking and engraving, and is especially suitable for marking, micro-holes, and high-speed division of glass materials for food and medical packaging materials. Wafers are used for complex pattern cutting and other applications.
| Name | RAYLINE LASER UV Laser Marking Machine | |||
| Model | RA-LM03 | RA-LM05 | RA-LM10 | RA-LM15 |
| Laser Power | 3W | 5W | 10W | 15W |
| Laser Wavelength | 355mm | 355mm | 355mm | 355mm |
| Volage Regulating(Customized) | 100-400VDC | 100-400VDC | 100-400VDC | 100-400VDC |
| Marking Depth | 0.01-0.3mm | 0.01-0.3mm | 0.01-0.5mm | 0.01-0.5mm |
| Machine Size | 668*550*320mm | 668*550*320mm | 668*550*320mm | 668*550*320mm |
| Net Weight | 50KG | 50KG | 50KG | 50KG |
| Marking Area | 110*110mm-300*300mm or Custmized | |||
| Marking Speed | ≤2000mm/s | |||
| Min Line Width | ≤0.005mm | |||
| Min Character | 0.15mm | |||
| Repeate Daccuracy | 0.002mm | |||
| Cooling System | Air/ Water Cooling | |||
| Language | English, Chinese (Customized) | |||
| Application | LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, Plastic buttons, electronic components, gifts, communication equipment, building materials, etc. | |||
Due to the extremely small focusing spot and the small processing heat-affected zone, the RAYLINE LASER UV Laser Marking Machine can perform ultra-fine marking and marking of special materials. RAYLINE LASER UV Laser Marking Machine is the first choice for customers who have higher requirements for marking effects. In addition to copper materials, RAYLINE LASER UV Laser Marking Machine are suitable for processing a wider range of materials. Not only the beam quality is good, the focused spot is smaller, and ultra-fine marking can be realized; the scope of application is wider; the heat-affected area is extremely small, no thermal effect, no material scorching problem; fast marking speed, high efficiency; overall machine performance Stability, small size, low power consumption and other advantages.
1. Can receive various BMP, JPG, DXF, PLT, AI and other format files.
2. Automatically generate various serial numbers, production dates, one-dimensional codes, and two-dimensional codes.
3. Support on-the-fly marking.
4. Support rotary marking.
5. Support large area XY platform for automatic segmentation and marking.
6. Simple and easy to operate.
RAYLINE LASER UV Laser Marking Machine is a series of laser marking machine, so the principle is similar to that of laser marking machine. They all use laser beam to make permanent marks on the surface of various materials. The effect of marking is to directly break the molecular chain of the substance through the short-wavelength laser (different from the evaporation of the surface substance produced by the long-wave laser to expose the deep substance) to reveal the pattern and text to be etched.
RAYLINE LASER UV Laser Marking Machine is mainly based on its unique low-power laser beam, which is especially suitable for the high-end market of ultra-fine processing, marking the surface of packaging bottles of cosmetics, medicines, food and other polymer materials, with fine effects and clear and firm markings. Better than ink jet coding and no pollution; flexible PCB marking and scribing; silicon wafer micro-hole and blind hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, Plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
1. RAYLINE LASER UV Laser Marking Machine has a two warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
