Fiber Laser Marking Machine is the third generation of laser marking system, using the world's more advanced laser technology, high pulse frequency, uniform engraving lines, fine patterns; strong engraving depth ability. The fiber laser uses a high-power multi-mode laser diode as the pump source, and a mirror-doped double-clad fiber is used as the laser medium. Times more than), so as to process exquisite patterns.

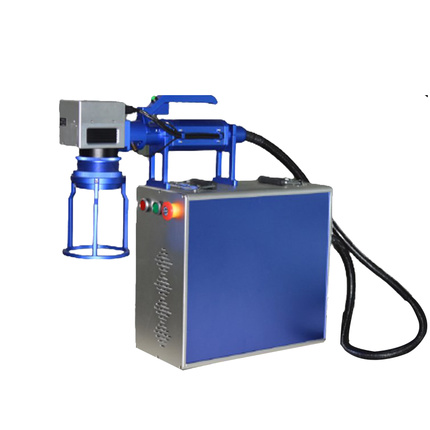

| Name | Portable handheld fiber laser marking machine | |||
| Model | RA-LM20 | RA-LM30 | RA-LM50 | RA-LM100 |
| Laser Power | 20W | 30W | 50W | 100W |
| Laser Wavelength 1064mm | 1064mm | 1064mm | 1064mm | 1064mm |
| Volage Regulating(Customized) | 100-400VDC | 100-400VDC | 100-400VDC | 100-400VDC |
| Marking Depth | 0.01-0.3mm | 0.01-0.3mm | 0.01-0.5mm | 0.01-0.5mm |
| Marking Area | 110*110mm/ 145*145mm/ 175*175mm (Customized) | |||
| Marking Speed | ≤7000mm/s | |||
| Min Line Width | 0.02mm | |||
| Min Character | 0.2mm | |||
| Repeate Daccuracy | 0.002mm | |||
| Cooling System | Air Cooling | |||
| Language | English, Chinese (Customized) | |||
| Application | Hardware tools, knives, kitchenware, plastic products, computer keyboards, metal jewelry, buttons, integrated circuits, packaging bottles and cans, spectacle frames ect | |||
The laser output laser, with high electro-optical conversion efficiency, good beam quality, small size, maintenance-free, laser wavelength of 1064nm, and good stability;
Fiber Laser Marking Machine of the software is powerful, compatible with CorelDRAW, AutoCAD, Photoshop and other software files; supports PLT, PCX, DXF, BMP, JPGE, etc., and can directly use SHX, TTF fonts;
Support automatic encoding, print serial number, batch number, date, barcode, QR code;
Automatic number skipping, etc.
Fiber Laser Marking Machine uses the most advanced laser technology in the world to pump the Nd:YAG medium with a laser diode with a wavelength of 808nm, so that the medium produces a large number of inverted particles, and under the action of the Q switch, a giant pulse laser output with a wavelength of 1064nm is formed. High electro-optical conversion efficiency.
Fiber Laser Marking Machine is widely used in precision machinery, electronic components, communications, molds, watches, glasses, printing, jewelry, hardware products and other industries. It is especially suitable for stainless steel high-speed scanning, light-transmitting keys, bitmap engraving, mold processing, Printing wheel engraving and other fields with high requirements for depth, smoothness and fineness. The equipment has the advantages of fast speed, stable operation and fine graphics in engraving applications.
CO2 laser marking machine is suitable for wood products, paper, leather cloth, plexiglass, acrylic and other non-metallic materials. It is widely used in leather, electronics, instrumentation, packaging and other industries. It can be combined with assembly lines for online marking.
1.The Fiber Laser Marking Machine has a two warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
