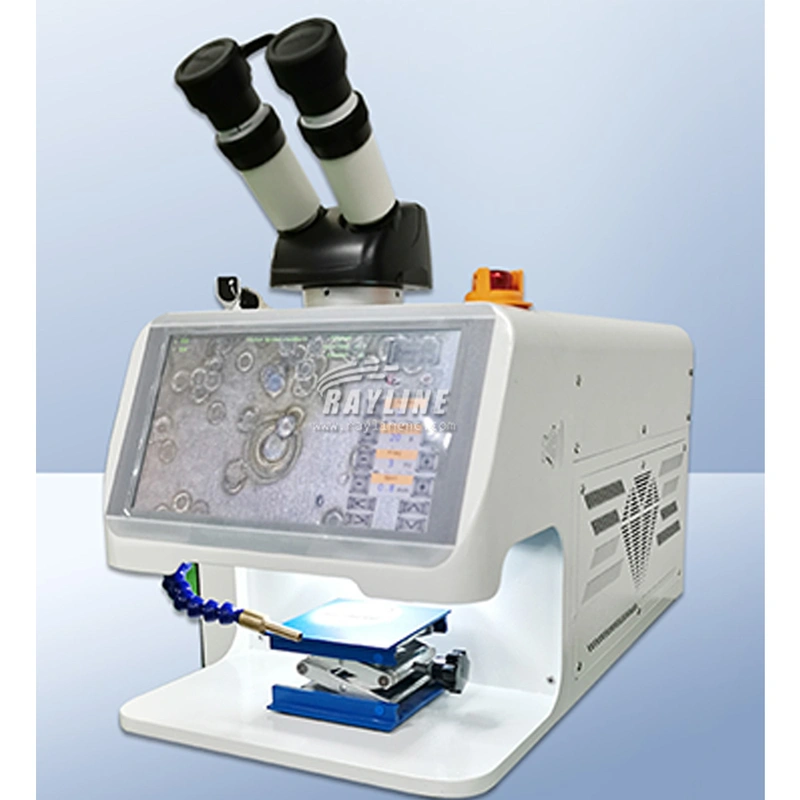

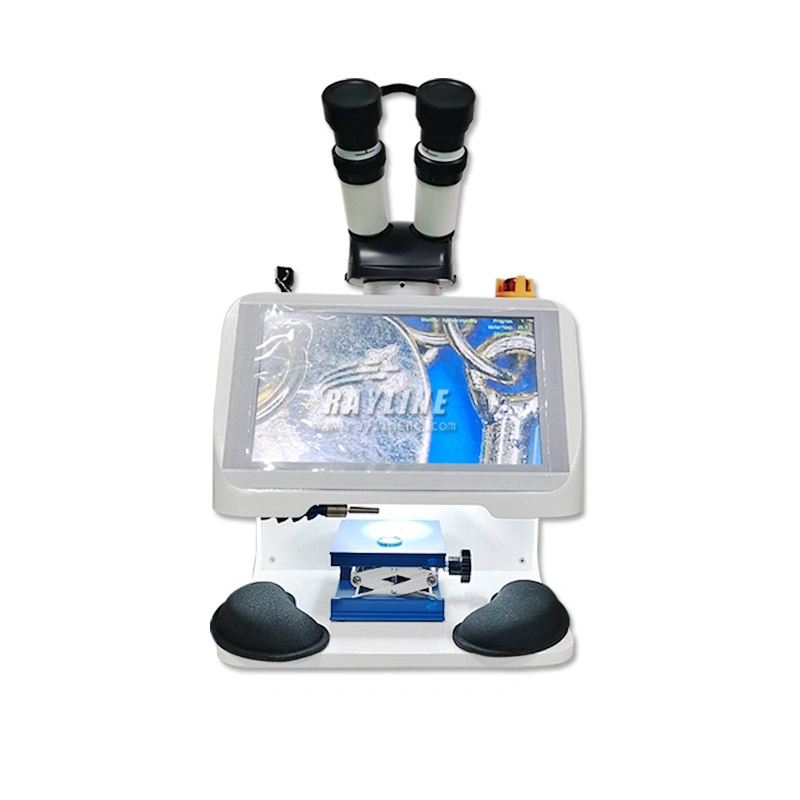

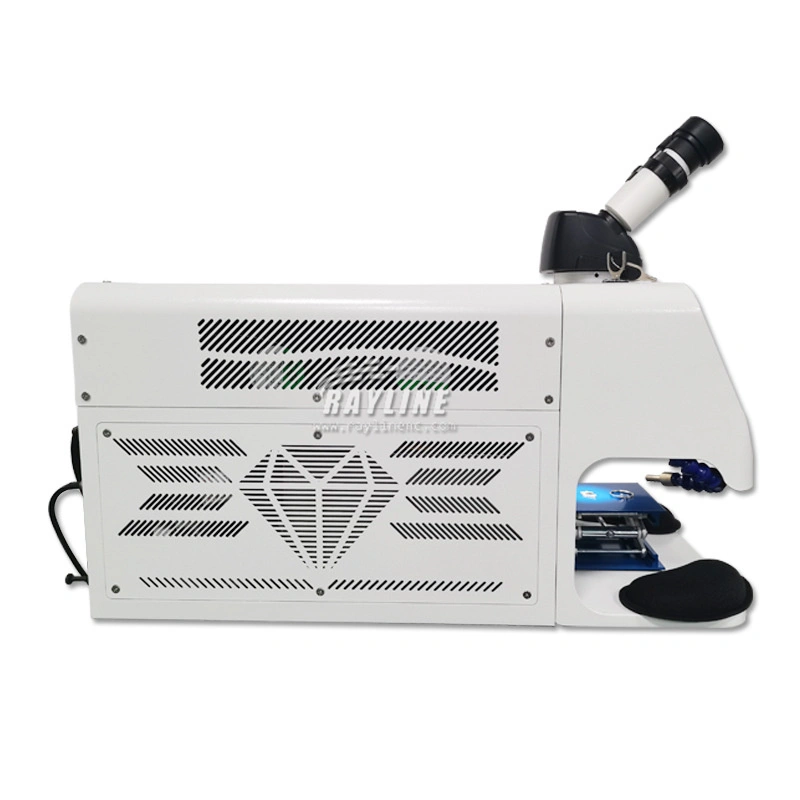

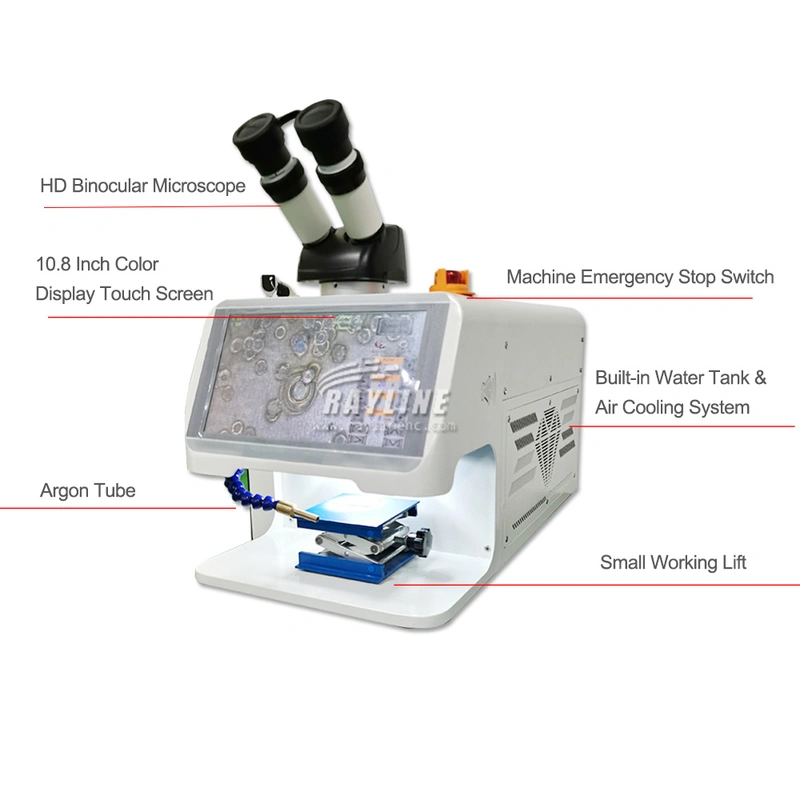

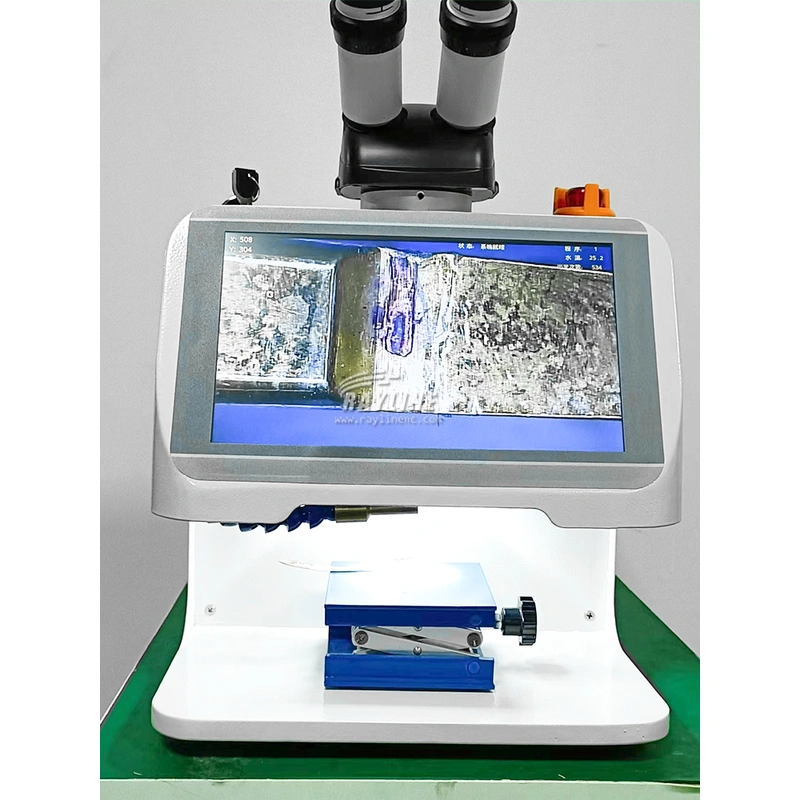

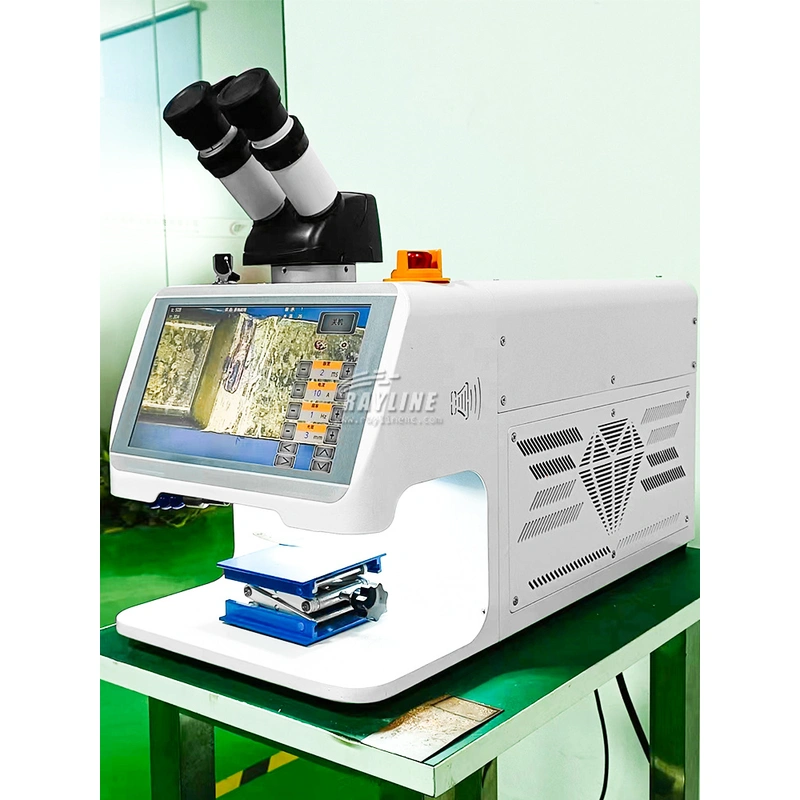

Máquina de soldadura láser por puntos para joyería. Su potencia es de 100 julios, lo que la hace muy potente. Pertenece a la categoría de máquinas de soldadura láser compactas para joyería y todos sus componentes están integrados con alta tecnología, lo que permite satisfacer las necesidades de un número creciente de clientes. El modelo RA-VR200 utiliza una lámpara de xenón de alta calidad con una vida útil superior a 9 millones de ciclos, y el cristal de la máquina es de la mejor marca en China. Esto le ayudará a ahorrar espacio en su taller de joyería.
| Nombre | Máquina de soldadura láser para joyería, máquina de soldadura láser por puntos | |||
| Modelo | RA-VR100 | RA-VR150 | RA-VR200 | RA-CR200 |
| Potencia láser | 100W | 150 W | 200 W | 200 W |
| Longitud de onda del láser: 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Regulación de voltaje (personalizada) | 100-400 V CC | 100-400 V CC | 100-400 V CC | 100-400 V CC |
| Ancho de pulso | 0,1-20 ms | 0,1-20 ms | 0,1-20 ms | 0,1-20 ms |
| Diámetro de la viga | 0,2-2 mm | 0,2-2 mm | 0,2-2 mm | 0,2-2 mm |
| Distancia de trabajo de la soldadura láser | 100-300mm | 100-300mm | 100-300mm | 100-300mm |
| Aiming and Positioning | Microscope +CCD (Combined) | Microscope +CCD (Combined) | Microscope +CCD (combined) | Microscope |
| Power | ≤5KW | ≤6KW | ≤6KW | ≤6KW |

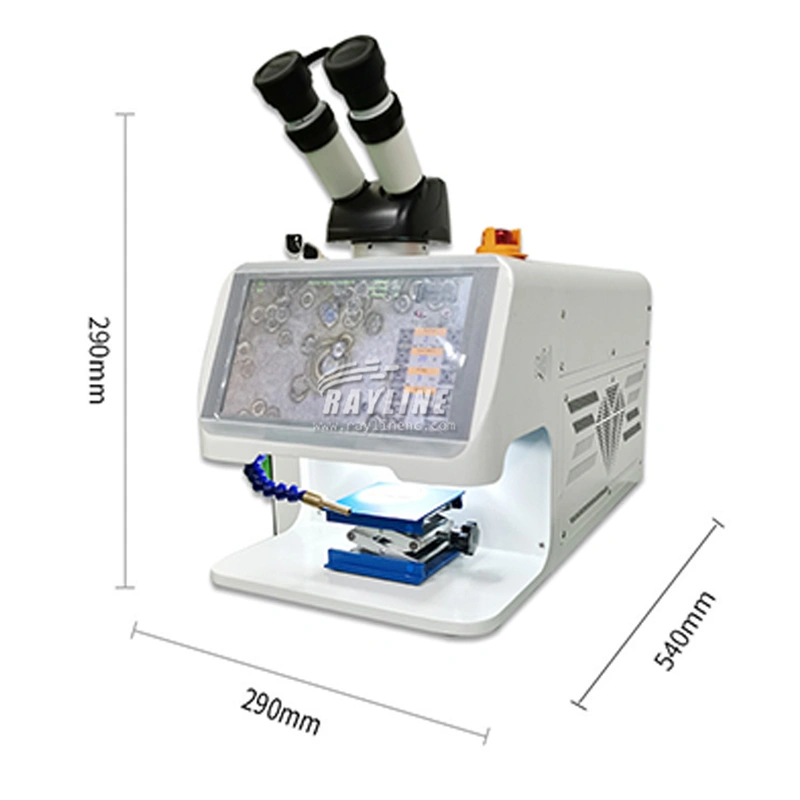

| Machine Dimension | 540*290*290mm | 560*290*290mm | 588*350*290mm | 780*420*350mm |
| Machine Net weight | 28KG | 34KG | 39KG | 60kg |
| Package size | 730*430*570mm | 750*430*570mm | 765*462*570mm | 970*540*580mm |
| Gross weight | 48kg | 51KG | 58KG | 105kg |
| Language | Chinese, English, Japanese, Spanish, Korean, Arabic, Portuguese, Russian, Turkish, Italian (Customized) | |||
| Application | Application Welding and repairing all kinds of metal jewelry | |||
Laser jewelry welding machine the characteristics of high welding strength and speed, and low rejection rate, and is widely used in jewelry manufacturing. Compared with traditional welding technology, it has the following advantages:
Fast speed, high strength, small deformation, no need for correction and cleaning after welding;
Laser jewelry welding machine is suitable for welding precision workpieces, which can ensure the processing quality;
The assembly precision is high, which is helpful for the development of new technology;
Good consistency and stability;
Laser jewelry welding machine can simplify the repair work of the workpiece;
Environmental protection and pollution-free;
Save processing metal materials.
Laser jewelry welding machine uses high-energy laser pulses to locally heat the material in a small area. The energy of the laser radiation diffuses into the material through heat conduction, and the material is melted to form a specific molten pool.
Laser jewelry welding machine is widely used for precision welding of various small parts, such as jewelry, electronics, communications, hardware, watches, military and many other industries and fields.
1.The Laser jewelry welding machine has a two warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
P3: ¿Cómo puedo usar la máquina si soy un comprador nuevo?
A3: Le entregaremos el manual en inglés y un video junto con la máquina. Si aún necesita nuestra ayuda, contáctenos.
P4: ¿Cómo controlan la calidad?
A4: Probaremos la máquina antes del envío y la someteremos a pruebas exhaustivas para verificar su precisión. Las máquinas no se enviarán hasta que hayan superado todas las pruebas esenciales y complejas tras funcionar durante al menos dos días sin interrupciones para garantizar su calidad.
P5: ¿Cómo puedo saber si su máquina está diseñada para mi producto?
A5: Puede enviarnos muestras de su producto y las probaremos en la máquina.
