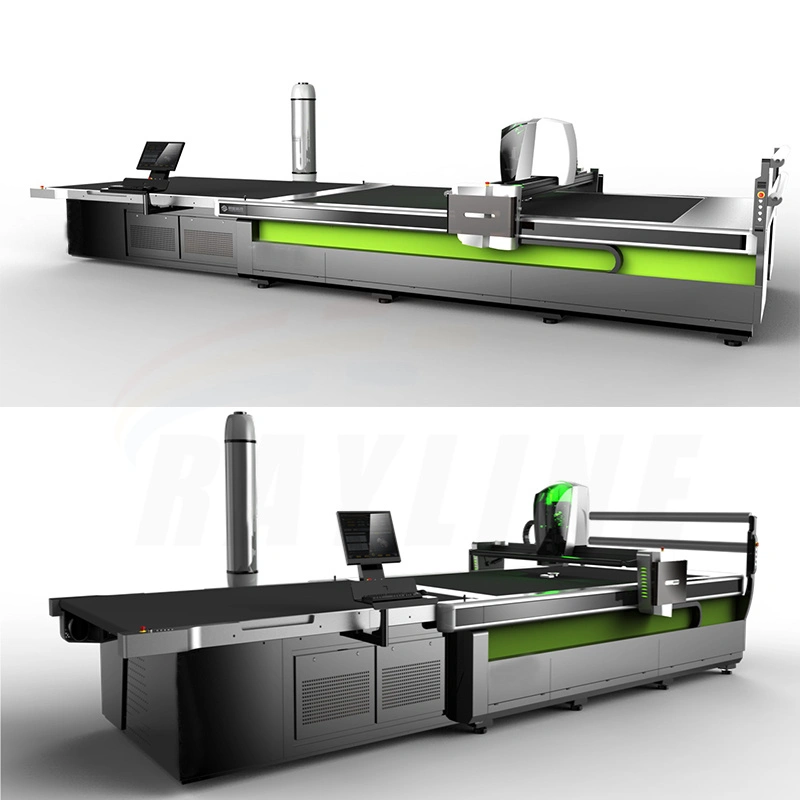

Computer Automatic Fabric Cutting Machine for Shoes Bra Leather Swimming Wear Compatible All CAD Aoftware
Automatic Fabric Cutting Machine is an automatic equipment that replaces manual cutting. Automatic Fabric Cutting Machine can realize multi-layer cutting, greatly increase processing efficiency and reduce labor costs. Automatic Fabric Cutting Machine is the representative of automatic clothing equipment. Automatic Fabric Cutting Machine is a high-precision multi-function CNC fabric cutting machine specially developed for mass production. After adsorption, Automatic Fabric Cutting Machine can reach the standard thickness of 7 cm/11 cm. The fully automatic computer cutting machine has excellent cutting speed. Automatic Fabric Cutting Machine has high precision, excellent energy saving, low carbon and intelligent high-tech products.
In the actual production process of the Automatic Fabric Cutting Machine, the cutting graphics are produced by computer CAD. After the graphics are laid out, they are input to the automatic cutting machine, and Automatic Fabric Cutting Machine cuts the fabric. Since the bed surface of the cutting machine can be continuously rolled, continuous fabric cutting can be completed.
| Product Name | Automatic Fabric Cutting Machine (Multi-layer cutting） | |||||

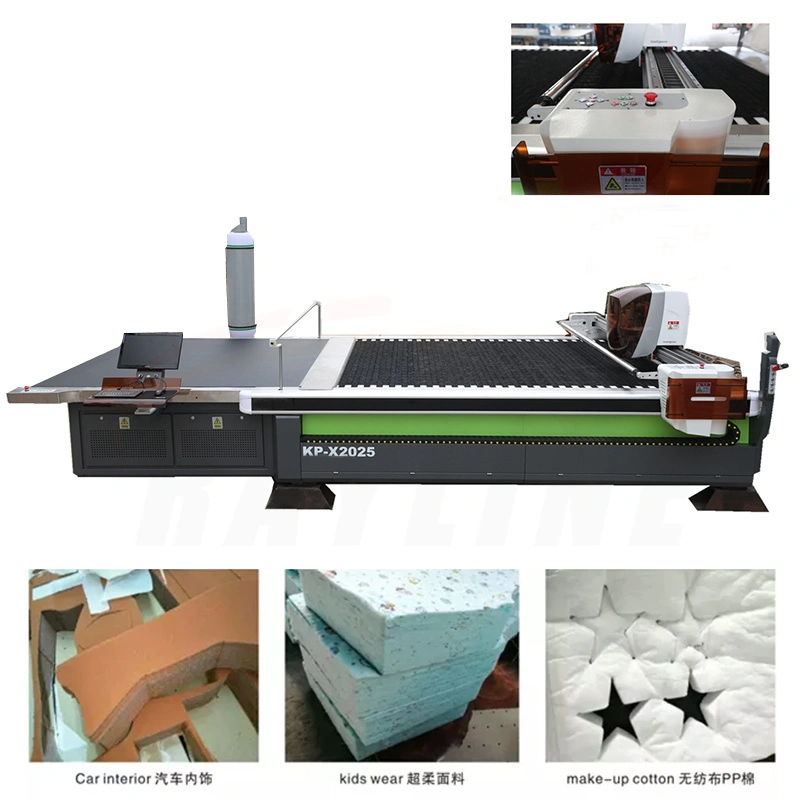

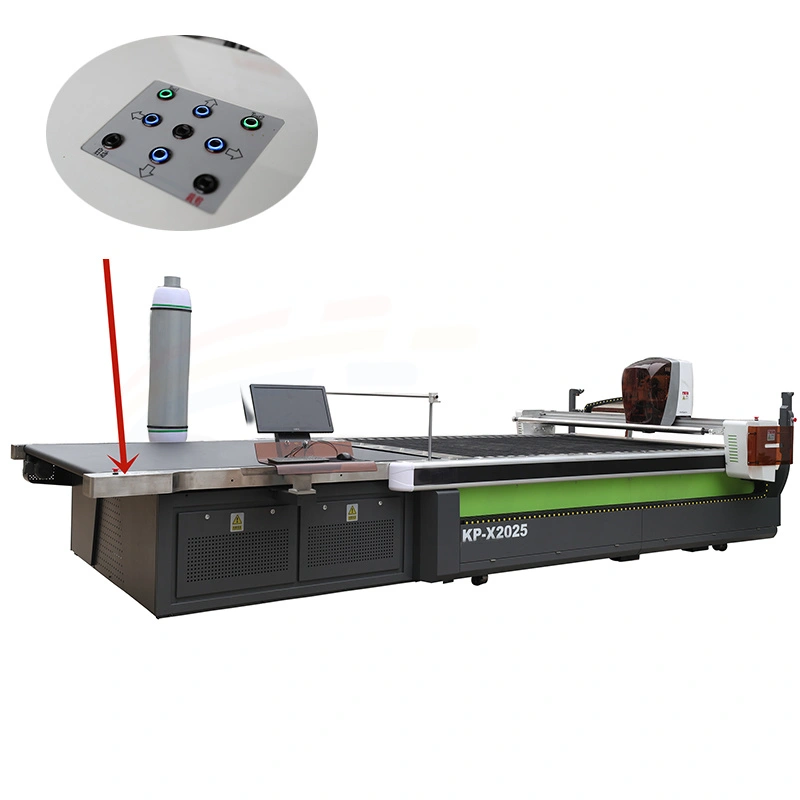

| Model | KP-X1725 | KP-X2025 | KP-X2325 | KP-X1733 | KP-X2033 | KP-X2333 |
| Cutting Area (MM) | 1700*2500 | 2000*2500 | 2300*2500 | 1700*3300 | 2000*3300 | 2300*3300 |
| Machine Weight (KG) | 3300 | 3500 | 3700 | 3700 | 3900 | 4100 |
| Machine Size (MM) | 5900*2650*1500 | 5900*2950*1500 | 5900*3250*1500 | 7500*2650*1500 | 7500*2950*1500 | 7500*3250*1500 |
| Cutting Accuracy | ≤±1mm | ≤±1mm | ≤±1mm | ≤±1mm | ≤±1mm | ≤±1mm |
| Power | 30KW | 30KW | 30KW | 30KW | 30KW | 30KW |
| Air Pressure Supply | 7KPS | 7KPS | 7KPS | 7KPS | 7KPS | 7KPS |
| Machine Power (Customized) | AC110V~380V | AC110V~380V | AC110V~380V | AC110V~380V | AC110V~380V | AC110V~380V |
| Cutting Style | Straight Knife Continous Up-down Cutting (After vacuum compression, Multi-layer cutting) | |||||
| Cutting Thickness | Max. 70mm (After vacuum compression) | |||||
| Max Cutting Speed | 60m/min (According cutting materials) | |||||
| Cooling System | Auto Air Cooling System | |||||
| Control System | KP-ACS Copyright system well compatibility with any version CAD software | |||||
| Software | Multi-language ACS software,auto change | |||||
| Sharpen Way | Double gear derogatory method | |||||
| Motor/driver | Apanese Panosonic Servo motors&Drivers | |||||
1. Machine body structures
a.The machine body is whole body with full welding.
b.machine body is been milled by the Large five-axis milling machine with one time fine milling.
c.The machine body adopt the advance steel plate seamless connection of square box with high-speed machine bed structure.
2. XY transmission system
The XY transmission system adopt the Germany gear and rack.
3.Controller system
The controller system has been research and developed by us, we own its copy right, it can accept 98% cloth CAD software and different file format PLT, DXF, CUT,TAC and so on.
4.Knife sharpening system
Adopts automatic knife sharpening technology
5.Safety system
Anti-collision device to prevent the machine hit someone who is standing by the machine.
6.Automatic senor system
Automatic sensor system for secondary film cover, it can reduce the air leakage when cutting.
Automatic Fabric Cutting Machine is widely used for different markets: leisure fashion suits,children's garments,suits,knitting casual/leisure suits, underwear ,swimsuit,corsage,seat cushion,massage chair,yacht/houseboat seat,shoes,cat,cold protective clothing,golf bag,handbag,home textiles,cow-bag,sleeping bag,tent, apparel,automotive, and furniture and soft fabric as well as other industries.
1. Pre-sales service -- professional individual consultation
A.Free sample making: For free sample making/testing, please send your samples or products CAD Graphics to our company in China.Try before you buy.
B. Progressing solution design
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2. After-sales service – professional qualification and training
One-year after-sales service includes:
A. We will offer some of the parts for free in the first year.
B. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights,housing and meals for the engineers in the local.
C. We will offer our service through email and phones and online service if the buyer needs any help on technical problems.
3. Installation and technical training includes:
We will send our engineers to customer's factory for the local training and the installation. The buyer needs to pay hotel and meals for the engineers in the local.
In-time golden services, Responsive within 24 hours technical support provided for peace of mind.
4. Customer-orient maintenance cost control guide
A. Parts supply intime
we produce on order, Parts in warehouse for over 30 sets to guarantee the delivery of order and maintenance.
B. Release clients worry about big equipment service; supply the part with bare cost.
5. Sales service management system
Standardized service management system, including: customer contact management, customer troubleshooting management, customer equipment regular maintenance, inspections management, customer records management and other accessories reviews.
