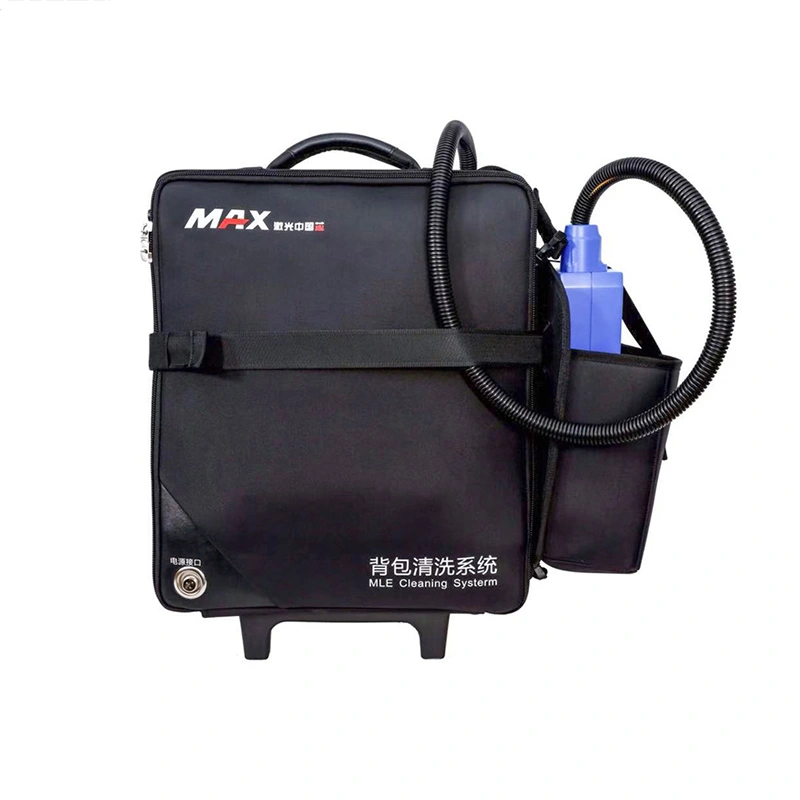

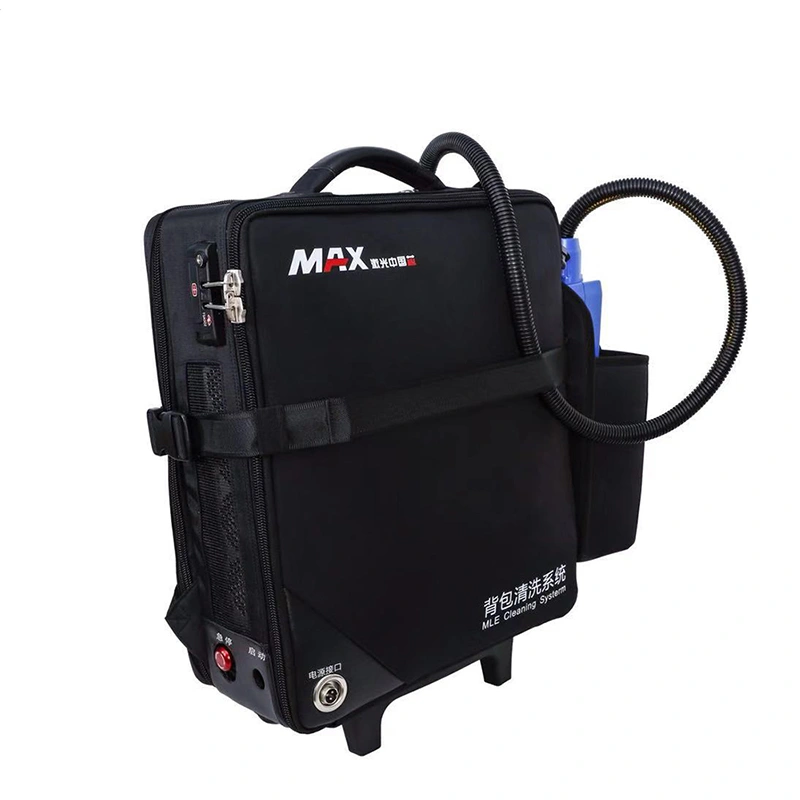

50w Backpack Handheld Fiber Laser Rust Removal Cleaning Machine
Backpack Laser Cleaning Machine, laser derusting machines, the fine parts are cleaned very safely, even the letters and bolts on the surface of the parts fall on the corners and corners. Backpack Laser Cleaning Machine can also be cleaned up. The high-frequency and high-power characteristics of the backpack laser cleaning machine can concentrate kilowatts or even ten thousand watts of energy into a small area. This kind of rust removal is one-time, and Backpack Laser Cleaning Machine also avoids the possibility of chemical rust removal on the human body.
Name | Backpack Laser Cleaning Machine | |||
Model | RA-LC50 | RA-LC100 | RA-LC200 | RA-LC1000 |
Laser Power | 50W | 100W | 200W | 1000W |
Laser Wavelength 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
Pulse Frequency(Adjustable) | 20-100KHZ | 20-100KHZ | 20-100KHZ | 20-100KHZ |
Laser Head Type | 2D scanning | 2D scanning | 2D scanning | 2D scanning |
Cooling Method | Air cooling | Air cooling | Water cooling | Water cooling |
Machine Size | 390*150*485MM | 380*270*575MM | ||
Machine Weight | 17KG | 30KG | ||
Scan Width | 10-60mm | 10-60mm | 10-60mm | 10-60mm |
Laser Power Brand | Raycus/ MAX/ JPT | Raycus/ MAX/ JPT | Raycus/ MAX/ JPT | Raycus/ MAX/ JPT |
Language | English, Russian, French, Korean, Portugal (Customized) | |||
Application | Can be used to clean contaminants such as metal paint/corrosion/particles/dust/oil stains, etc |
1. Controllable: the rust removal area and the thickness of the rust removal are controllable;
2. The rust removal quality is uniform: uniform and consistent during the life of the laser;
3. Intelligence: easy to detect and control, and the process is intelligent;
4. No damage: only remove surface contaminants;
5. Convenient operation: non-contact, handheld, and automatic cleaning;
6. Green and environmental protection: no chemical reagents and no noise.
Backpack Laser Cleaning Machine irradiates the surface of the workpiece with high-frequency and high-energy laser pulses. The coating layer can instantly absorb the focused laser energy, so that the oil, rust or coating on the surface can be evaporated or peeled off instantly, which can effectively remove surface attachments or surfaces at a high speed. The cleaning method of the coating, and the laser pulse with a short action time, the backpack laser cleaning machine will not damage the metal substrate under the appropriate parameters.
1. Backpack Laser Cleaning Machine can be used to clean contaminants such as metal corrosion/particles/dust/oil stains, etc.
2. Backpack Laser Cleaning Machine has been used in tire molds, auto parts, food molds,petrochemicals/ships/aerospace/track
3. Fields such as the protection of exterior walls of transportation buildings/cultural relics, circuit boards, semiconductor wafers, rust and dust removal, and deester cleaning in the processing and manufacturing of precision parts.
1. RAYLINE LASER Backpack Laser Cleaning Machine has a two warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
