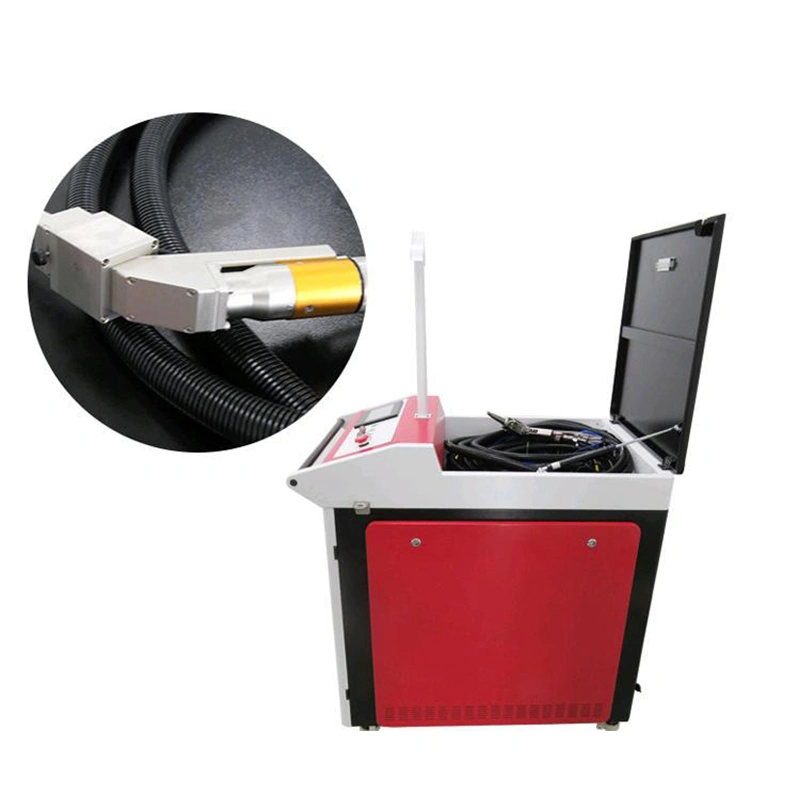

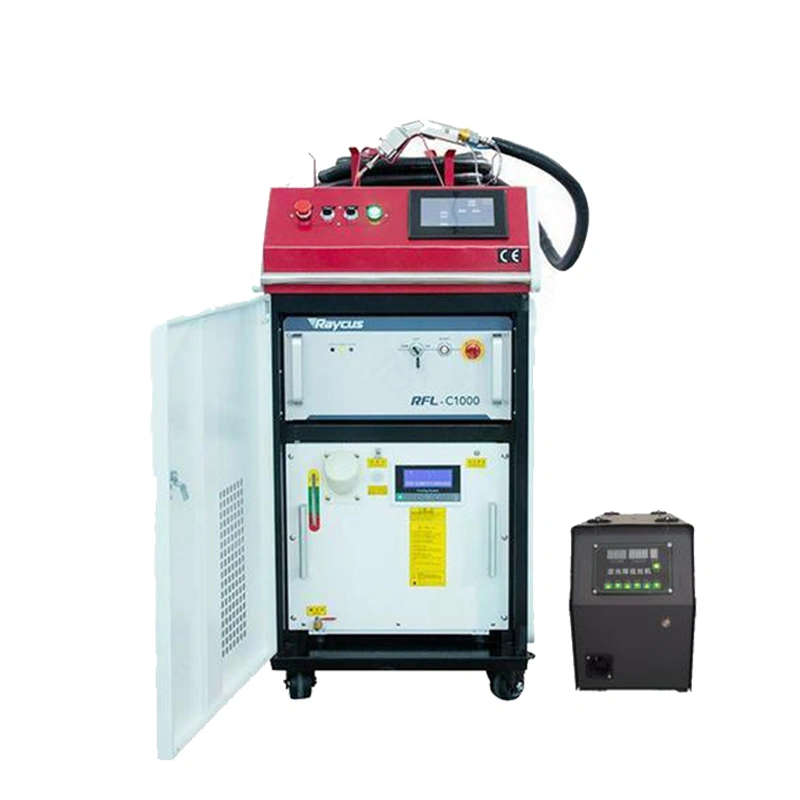

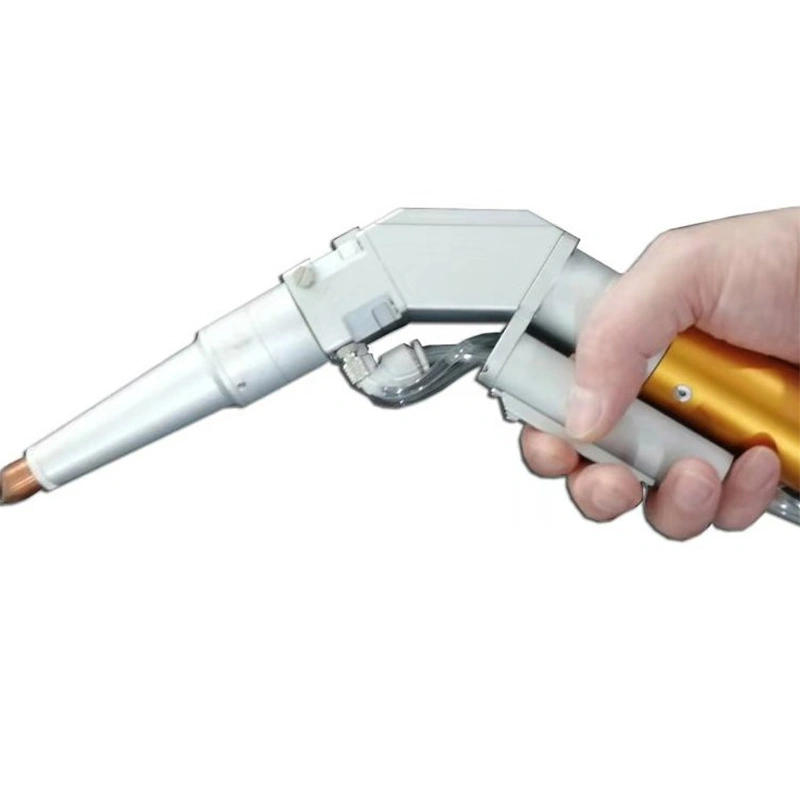

200W 500W 1KW 2KW Portable Laser Cleaning Machine Laser Rust Removal

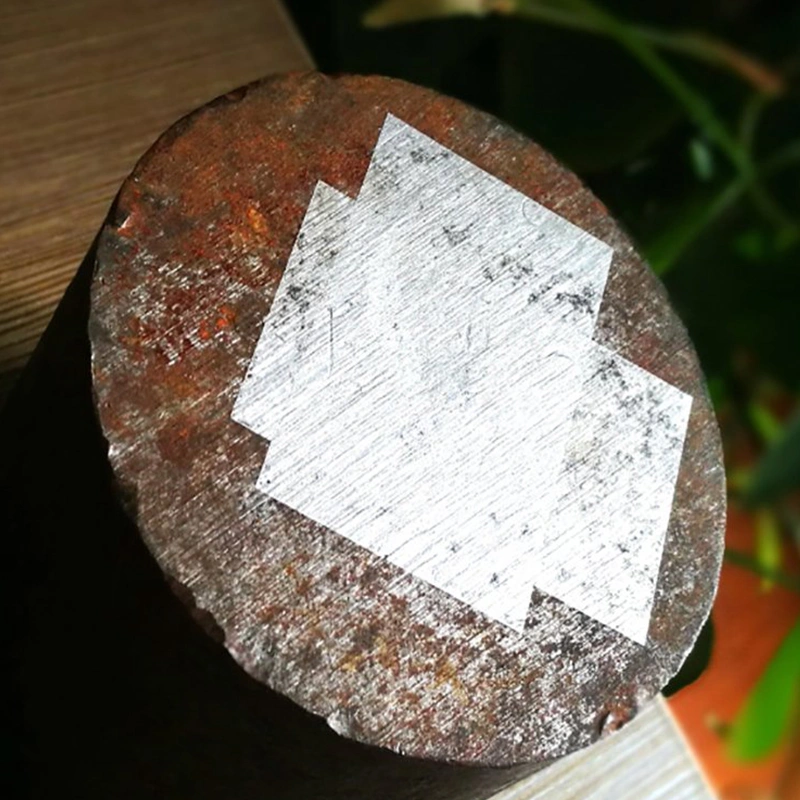

The overall appearance of the Portable Laser Cleaning Machine is small and exquisite. Portable Laser Cleaning Machine is not as large as an ordinary laser derusting machine, and it is more convenient to carry. Portable Laser Cleaning Machine is suitable for working in narrow places or working at heights. Laser rust removal uses the reflectivity of metal to light to protect the workpiece from damage, and the work efficiency is quite high, and the rust on the surface can be peeled off with a single sweep.
| Name | Backpack Laser Cleaning Machine | |||
| Model | RA-LC50 | RA-LC100 | RA-LC200 | RA-LC1000 |
| Laser Power | 50W | 100W | 200W | 1000W |
| Laser Wavelength 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
| Pulse Frequency(Adjustable） | 20-100KHZ | 20-100KHZ | 20-100KHZ | 20-100KHZ |
| Laser Head Type | 2D scanning | 2D scanning | 2D scanning | 2D scanning |
| Cooling Method | Air cooling | Air cooling | Water cooling | Water cooling |
| Machine Size | 390*150*485MM | 380*270*575MM | 1100*950*700MM | 1100*950*700MM |
| Machine Weight | 17KG | 30KG | 130KG | 140KG |
| Scan Width | 10-60mm | 10-60mm | 10-60mm | 10-60mm |
| Laser Power Brand | Raycus/ MAX/ JPT | Raycus/ MAX/ JPT | Raycus/ MAX/ JPT | Raycus/ MAX/ JPT |
| Language | English, Russian, French, Korean, Portugal (Customized) | |||
| Application | Can be used to clean contaminants such as metal paint/corrosion/particles/dust/oil stains, etc | |||
1. Non-contact cleaning: Laser cleaning technology has no contact with the surface of the material, and can be used to clean various shapes of components. It can solve the problem that mechanical cleaning is difficult to deal with complex surface processing.
2. No damage to the substrate: After the laser cleaning technology cleans the surface contaminants, it does not damage the substrate or the product, and can solve the problem of damage to the surface of the workpiece by mechanical polishing.
3. Efficient and environmentally friendly: Laser cleaning technology is highly energy-saving and environmentally friendly. Compared with chemical cleaning, problems such as damage to the substrate, limited component size, long time and low efficiency, and chemical reagents harmful to the human body and the environment can be effectively solved.
Portable Laser Cleaning Machine is also called laser derusting machine. The principle of portable laser cleaning machine is mainly based on the fact that the contaminants on the surface of the object absorb laser energy, or vaporize and volatilize, or instantaneously heat and expand to overcome the adsorption force of particles on the surface and make it separate from the object. Surface, and then achieve the purpose of cleaning. Because the portable laser cleaning machine uses the laser to directly act on the workpiece, it does not use any chemicals or syrup, and does not need to directly contact the workpiece, so it does not hurt your hands.
Portable Laser Cleaning Machine can be applied to metal and non-metal materials. Metallic materials include stainless steel, iron, carbon steel, aluminum alloy, copper, etc., and non-metallic materials include glass, ceramics, paper, etc., and portable laser cleaners can be applied to these workpieces.
1. RAYLINE LASER Portable Laser Cleaning Machine has a two warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 24 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
