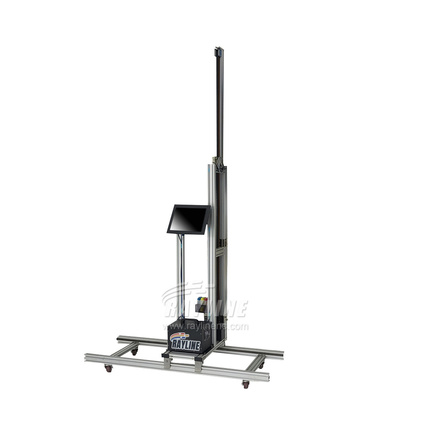

The main body of the RAYLINE LASER AI 4K Wall & Floor Printer RA-WD200P is made of special formula aluminum-magnesium alloy. The body is lighter, more portable to carry, and easier to install and operate. The AI 4K Wall Printer adopts a newly developed integrated control panel, a full wireless control system, a touch screen, and internal electronic library storage. AI 4K Wall & Floor Printer is more convenient to transfer, supports Bluetooth, WIFI, USB.
The newly upgraded print head of the AI 4K Wall & Floor Printer adopts an integrated nozzle design and a detachable structure to effectively prevent the inkjet printer from damaging the wall due to hitting the frame; a fully enclosed nozzle mounting plate to extend the actual service life of the nozzle. American imported sensor system, dual sensors, surface tracking, automatic positioning, automatically solve the problems of uneven walls, inclined walls, etc., effectively reducing the risk of damage to the print head of the wall inkjet printer. AI 4K Wall & Floor Printer is also equipped with a high-precision brushless servo motor control system, eliminating post-maintenance.
1. AI 4K Machine control: Intelligent 12 inch Ipad touch screen control system.
2. AI intelligent wall and floor printing system: Optional.
3. AI print head cleaning system: One key automatically.
4. Folding function: One key automatical folding.
5. AI intelligent color upgrade, 4K ultra-clear printing results.
6. AI intelligent high-jet printing function: Yes, cylindrical printing, curved wall printing, oblique printing, etc.
7. AI intelligent remaining ink level display, remainingbattery power display, ink printable square number display, etc.
8. AI intelligent split printing, large pictures are automatically divided into several small pictures, automatically positioned, seamlessly spliced, and automatically marked when power.
| Name | AI 4K Wall & Floor Printer | Model | RA-WD200P |
| Painting Speed | 32/64/128㎡/H | UPS Battery Life | About 10/12 hours |
| Painting Accuracy | 9600DPI | Data Transmission Method | Bluetooth, WIFI, USB2.0/3.0 |
| Machine Computer | Ipad( Tourch screen) | IPad Size | 12 inch |
| Rail Size(L×H)mm | 3000×2600mm | Host Size (L×W×H)mm | 400×320×2500mm |
| X Axis Effective Stroke | 2000mm | Y Axis Effective Stroke | Unlimited |
| Z Axis Effective Stroke | 150mm | Z Axis Guide | 170mm(Automatic) |
| Gift Gallery | Free 2T Library | Ink Consumption | 6-10ML Per One Square |
| Automatic White Jump | YES | Nozzle Automatic Cleaning | YES |
| Total Body Weight | 30 kgs | Total Track Weight | 26.5 kgs |
| Main-board Configuration | 8-core CPU, 4GB DDR memory | ||
| Using Ink | Special environmental protection organic water-based ink (waterproof, anti stripping) | ||
Power Consumption | No load:20W, Generally:75W, MAX: 250W | ||
Printing Head | Japan original Epson imported industrial grade printing head | ||
Construction Noise | Standby < 20db, drawing < 70db | ||
| Supporting Pictures | Photos taken by mobile phone / camera and Internet | ||
Power Requirements | Household electricity: 110 VAC to 380 VAC (Cusomized) | ||
Applicable Media | White wall, ceramic tile, glass, metal, acrylic, paper, etc | ||
Format of National Film | Include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF | ||
| Operating Environment | -20 ° c-50 ° C (- 4f-140f), 10% - 80% relative humidity, non condensing state | ||
Storage Environment | -21c-5o ° C (- 22f-140 ° f), 10% - 80% relative humidity, non condensing state | ||
| Operating Platform | Windows xP/7/8/9/10 | ||
| Certification Qualification | Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification | ||
| Laser Positioning | Precise infrared laser positioning system | ||
| Power Failure Alarm | Real time power failure alarm system | ||
| Language | Chinese / English (other languages can be customized) | ||
| NOTE | The above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail. | ||
1. Machine height: 2.5M, Rail length: 3M. Print Size: Unlimited.
2. Machine move: Wheels and rails.
3. Print heads: Epson custom industrial grade printhead.
4. Printing Resulotion: 9660 dpi.
5. Machine weight: 31.5kg.
6. Print speed: 32/64/128 ㎡/h.
7. Ink consumption per square meter: 6-8ML.
8. Machine warranty: Two years.
9. UPS battery lift: 10/12h continuous operation requires.
10. Machine drive: Servo drive.Higher movement.
accuracy and more stable work.
11. 100G Gallery of HD photos.
12. Application:Lime,cement,brick,wooden,plaster,glass, ceramic, plastic, metal, PVC ect.
13. Image format: GIF, .TIFF, .PSD, .CDR, .DXF, .JPEG,JPG, .PNG, .BMP, .SWF, .EPS, .AI, PDF.
1. The AI 4K Wall & Floor Printer is essentially a type of piezoelectric inkjet printing equipment;
2. The uv ink itself can react with the ultraviolet rays in the sun and cause solidification, so in the process of storage and transportation, you need to use a black bottle to avoid exposure to sunlight;
3. The UV lamp in the wall printer reacts with the photosensitive curing agent in the UV ink through the ultraviolet wave emitted by the LED cold light source lamp, causing the pigment molecules in the UV ink to solidify on the surface of the material.
Home improvement industry: TV background wall, porch background wall
Outdoor industry: school cultural wall, new rural image wall
Stone industry: large slab stone, granite background wall, marble, artificial stone
Home decoration: shop decoration, oil painting wall surface, decorative painting and other industries:
Furniture industry: marble table top, jade TV cabinet, wardrobe door, cabinet door, wooden door industry
Glass industry: glass background wall, glass decorative painting, glass crafts.
Decorative ceramics, wooden crafts, furniture, metal panels, ceilings, curtain fabrics, tapestry murals, etc. Brings simple and personalized operations to decorations and special products. Previously, this type of market was characterized by high manual processing components, low production efficiency, and many short-run operations. Digital painting technology does not require plate-making and single-width printing, and the finished product is high. , The production speed is fast, the photo-level picture can be sprayed, and the color is rich and colorful to replace the previous hand-made. Open up a unique personalized market in the decoration industry.
1.The AI 4K Wall & Floor Printer has a two-year warranty, except for the parts that can be touched by the ink and our online technical support and software for the machines are always free;
2.Each customer will have one to one after-sales technical personnel service, including installation, use and later machine use in any problem can be at any time to serve you;
3.The manufacturing and testing of products have quality records and testing data;
4. For product performance testing, users are sincerely invited to check the whole process and performance of the product in person, and then pack and ship the product after it is confirmed to be qualified;
5.In order to ensure the high reliability and advancement of the product, the selection of the system is made of domestic or international high-quality brand-name products.
6. Under the same competitive conditions, on the basis of not reducing product technical performance and changing product components, we will sincerely provide you with the most favorable price.
Q1. Parts supply? To be safe, do you need to buy anything else?
A1. AI 4K Wall & Floor Printeris very safe, no need to buy other accessories. AI 4K Wall & Floor Printer print heads and inks are common parts in the market and can be purchased locally or directly from us.
Q2. Are you a manufacturer or a distributor?
A2.We are a manufacturer with independent R&D and production capabilities. We have a research and development base and assembly workshop. In addition, our products are sold at home and abroad, welcome to visit our factory at any time.
Q3. What model is the print head of AI 4K Wall & Floor Printer?
A3.We use Epson printing nozzles from Japan.
Q4. How long is the printer warranty of AI 4K Wall & Floor Printer?
A4.2-year warranty and lifetime maintenance.
Q5. We need a printer to print with the smallest left and right recesses. The distance between the wall and the left and right must be 3.5-4 cm. Do you have such a printer?
A5.Yes, we have such a wall-mounted AI 4K Wall & Floor Printer.
Q6. Can the printer be controlled via Wi-Fi?
A6.Yes, you can use a tablet to control it.
